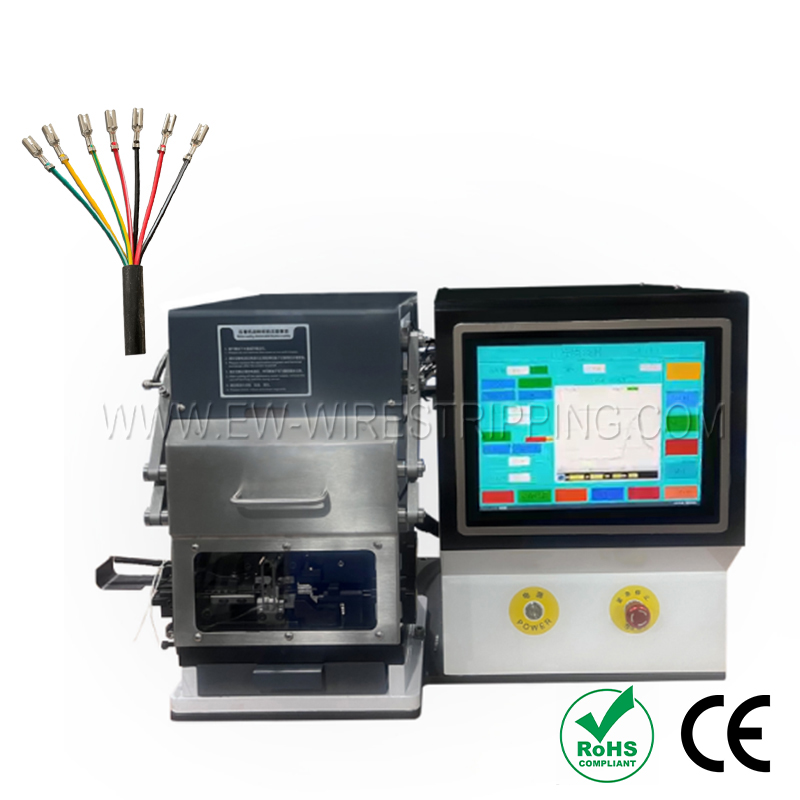

Servo Motor wire stripping and crimping machine AWG32-AWG18 with Smart Software
Electrical
Model：Servo Motor wire stripping and crimping machine AWG32-AWG18 with Smart Software
Model:EW-5455
Applicable wire diameter:AWG32-AWG18
Stripping length:1-10mm
Production rate:3000-3500Pcs/H
Crimping force:2T
Air pressure:0.3-0.4mpa
Applicable wire diameter:AWG32-AWG18
Stripping length:1-10mm
Production rate:3000-3500Pcs/H
Crimping force:2T
Air pressure:0.3-0.4mpa
Technical Data
|
Model |
EW-5455 |
|
Applicable wire diameter |
AWG32-AWG18 |
|
Stripping length |
1-10mm |
|
Production rate |
3000-3500Pcs/H |
|
Crimping force |
2T |
|
Air pressure |
0.3-0.4mpa |
|
Power |
220V/110V/50HZ/60HZ |
|
N.W |
100KG |
|
Dimension |
L800*W550*H650mm |

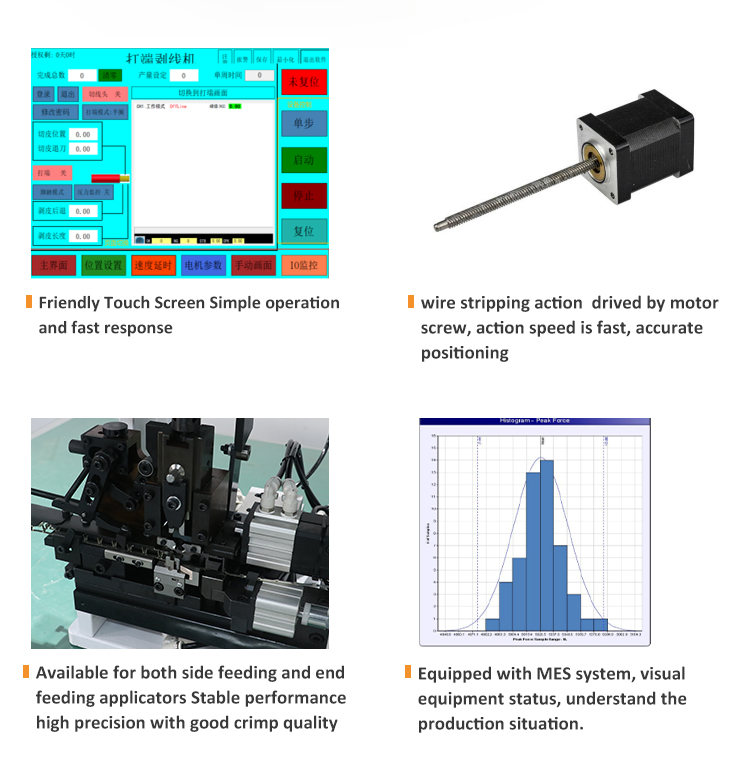

Feature
• For very thin lines, the processing of multi-core shielded lines has obvious results;
• The machine wire stripping action motor screw drive, fast action speed, accurate positioning;
• The waste material after stripping is vacuum suction, clean and simple;
• Adopts servo motor crimping, the pressure is highly accurate, quiet and precise;
• The machine can be adjusted by touch screen, simple operation, clear data;
• Equipped with MSE system, intuitive equipment status, understand the production situation.

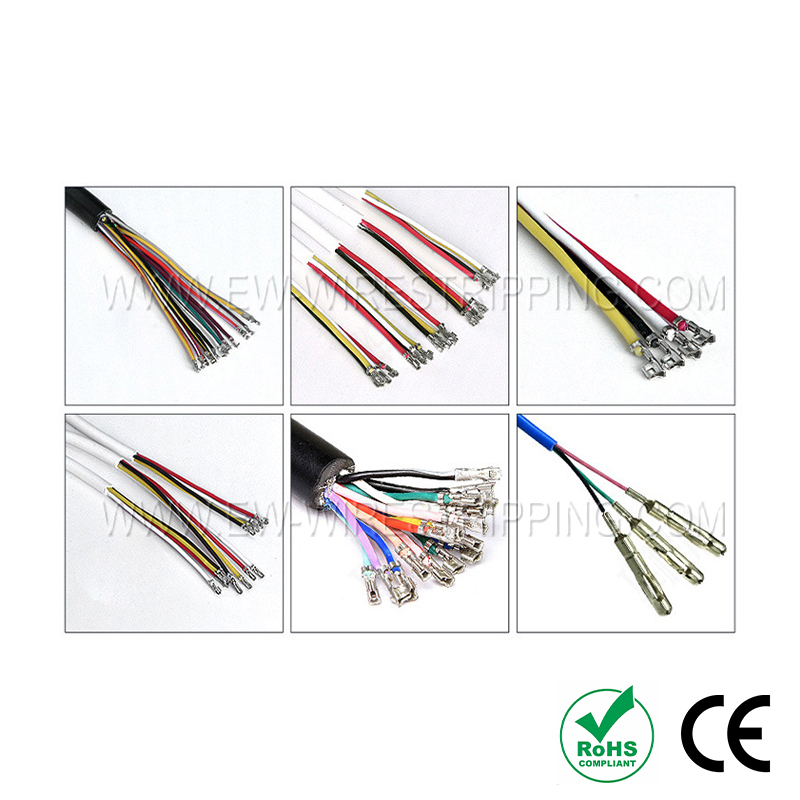

Application Range
