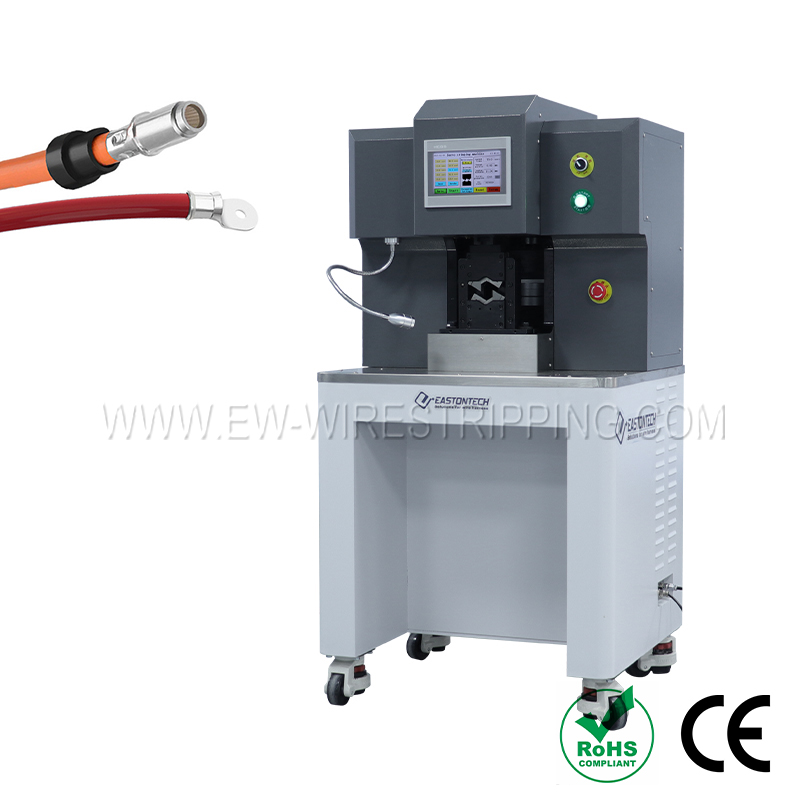

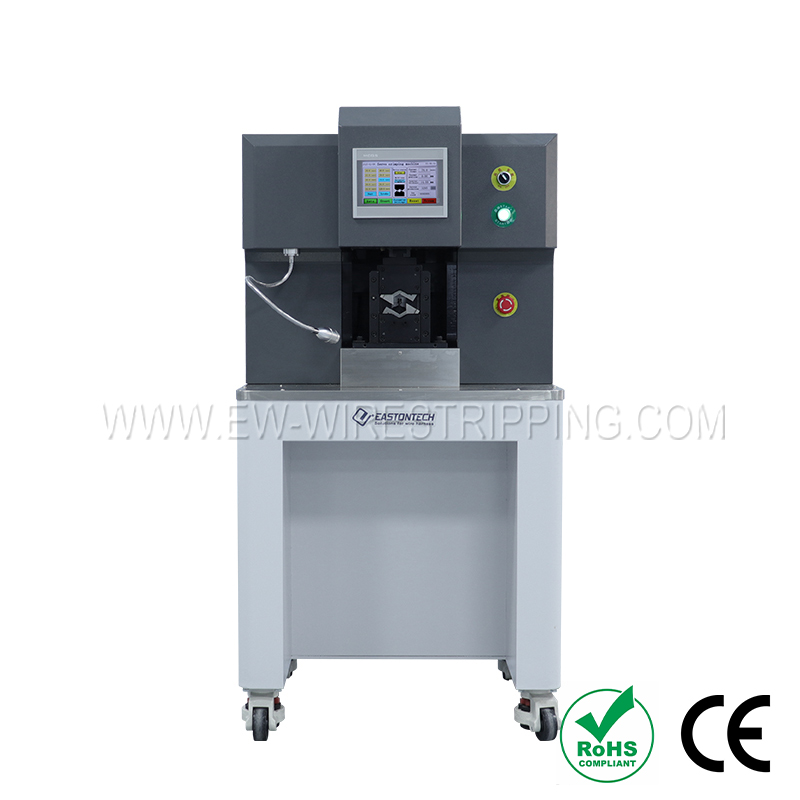

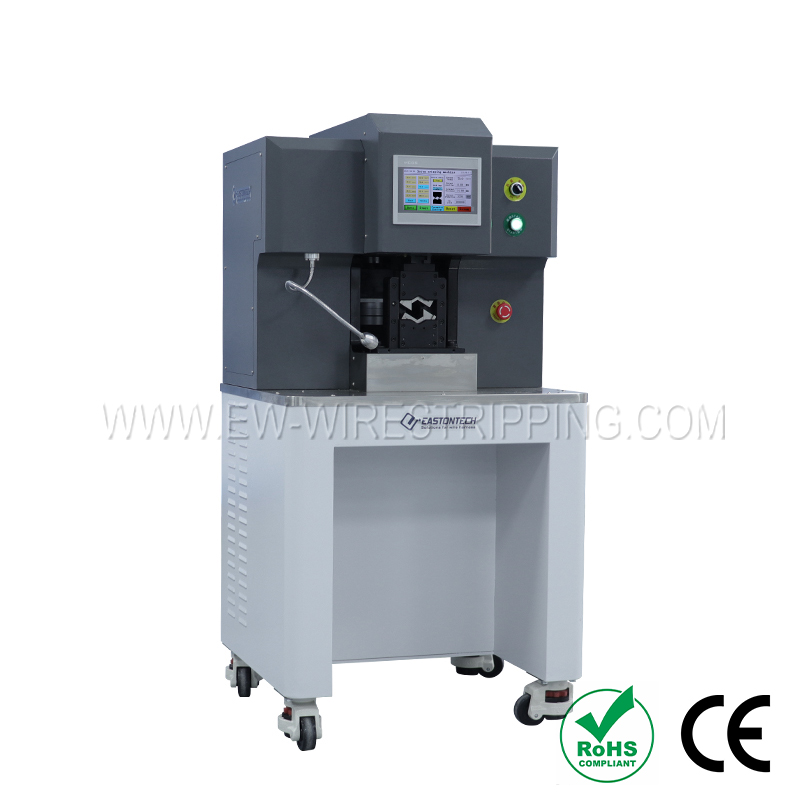

Servo motor crimping machine 4-120mm2
Electrical
Technical Data
|
EW-5460 |
|
|
Applicable wire diameter |
4-120mm2 |
|
Stroke |
40mm |
|
Production rate |
1500Pcs/H |
|
Power |
2300W |
|
Store program |
30 group |
|
Power |
220V/110V/50HZ/60HZ |
|
N.W |
370KG |
|
Dimension |
580*780*1480mm |
|
Driver mode |
Servo Motor |
|
Start mode |
Electric |
Feature
· Spindle drive is about 30mm (depending on the thickness of the terminal).

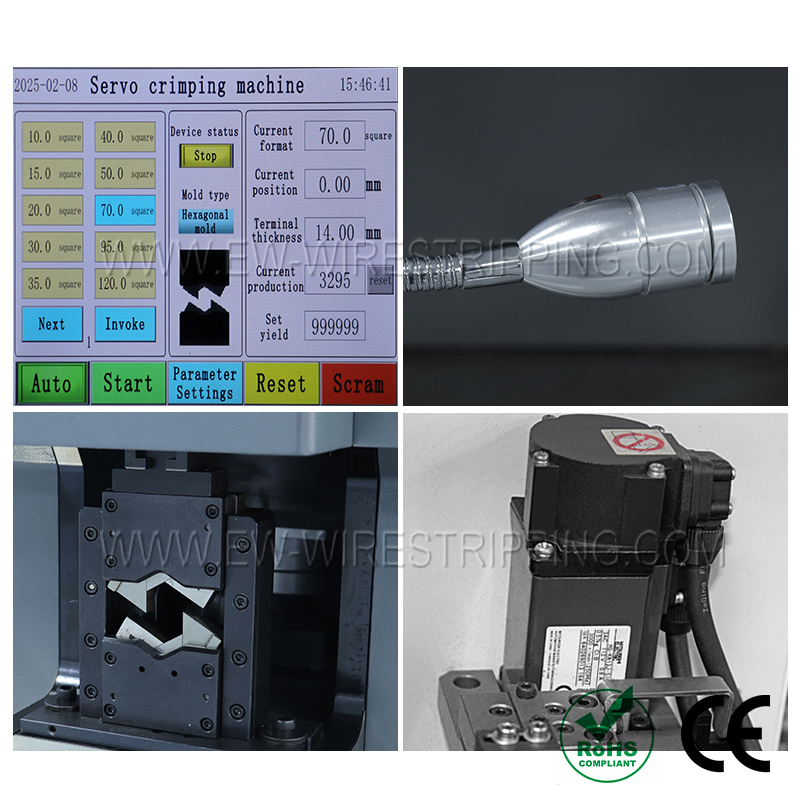

· Height adjustment is fine-tuned with touch screen.
· Speed: press once to complete the speed of about 2.5 seconds.
· Accuracy is positive or negative 0.015mm.
· The pressure holding time can be set when pressing the lower point.

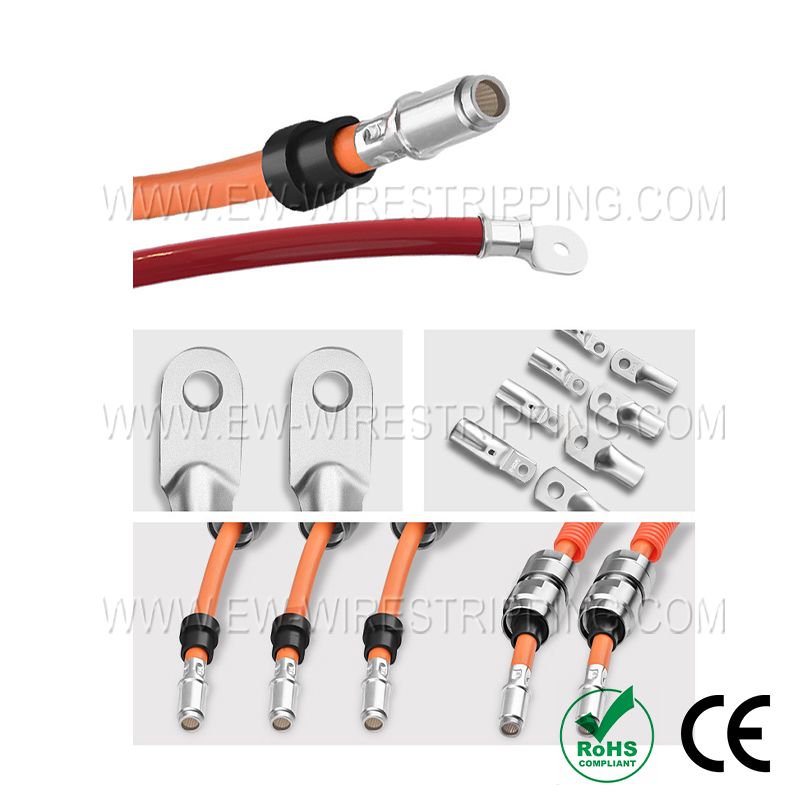

Application Range
More Info
Model：Servo motor crimping machine 4-120mm2
Model：EW-5460
Applicable wire diameter：4-120mm2
Stroke：40mm
Production rate：1500Pcs/H
Power：2300W
Applicable wire diameter：4-120mm2
Stroke：40mm
Production rate：1500Pcs/H
Power：2300W
