Cable cutting length:Lam≤999M
Cable cutting specifications:ø 0.9-ø 7 single-core, dual-core, ribbon cable, leather cable
Cable unwinding machine load:35KG
Cable delivery speed:1.6m/s

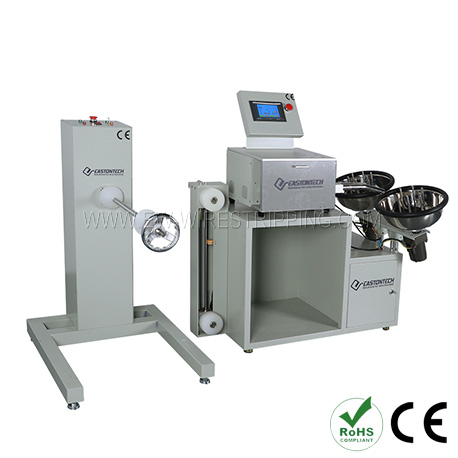

1. The fully automatic fiber optic cable cutting machine is a special equipment used for measuring, cutting and winding optical cables in the production of optical fiber jumpers. It can cut and wind optical cables of different specifications into the required length and ring shape.
2. This machine combines the advantages of similar products at home and abroad, and adds a set of automatic processing functions for batch feedback of data, which greatly improves the accuracy of calculating length. It has the functions of automatic cable winding, automatic protection of optical cables, and automatic cutting.
3. The length and speed parameters are flexible to set, and the production efficiency is high.
4. It adopts a humanized touch screen operating system with a simple and clear interface and can choose Chinese/English languages.
5. This machine is easy to operate, with high precision, fast speed and low noise. It is the most advanced one among similar products on the market.
Model
EW-1315
Cable cutting length
Lam≤999M
Control system
Chinese and English control interface
Cable cutting specifications
ø 0.9-ø 7 single-core, dual-core, ribbon cable, leather cable
Cable unwinding machine load
35KG
Cable delivery speed
1.6m/s
Length accuracy
Lam≤3‰
Power supply
450W, 220V, 50/60Hz
Packing method
Foam + wooden box
Net weight of the machine
175KG
Dimensions
L200(cm)xW50(cm)xH120(cm)
