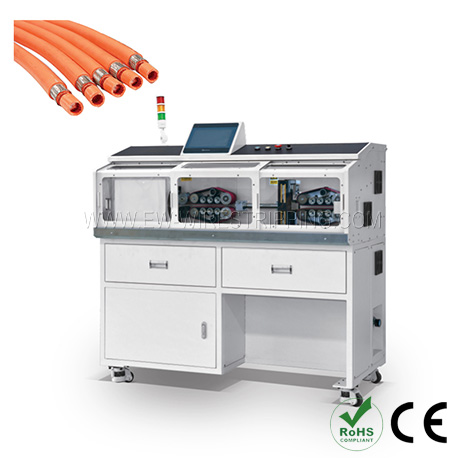

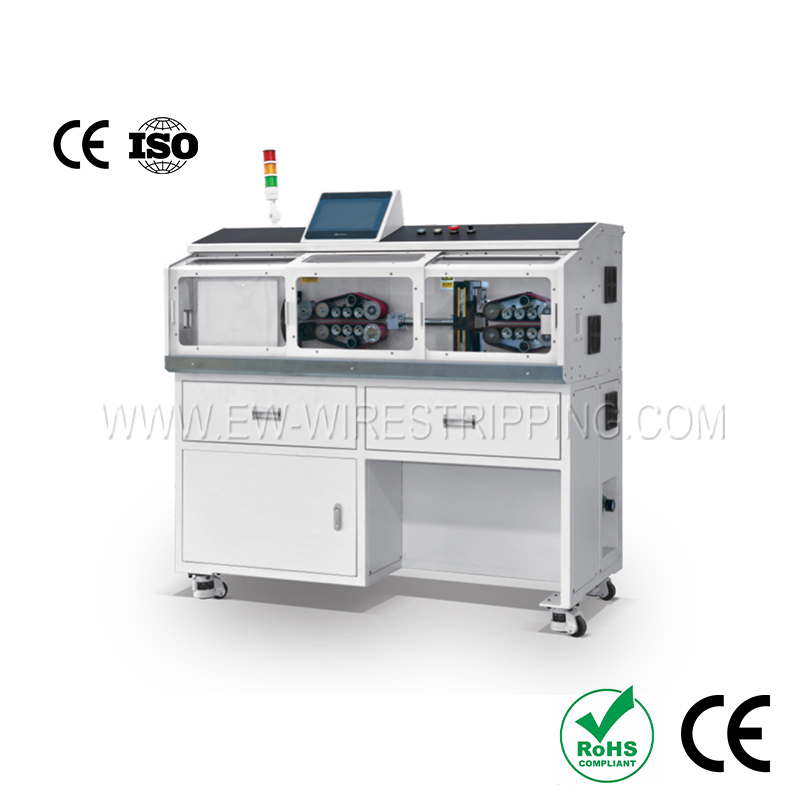

Large square rotary stripping and cutting machine(6-120mm2)
Pro-cut&Strip
Technical Data
|
Model |
EW-3190 |
|
Stripping range |
6-120mm2 |
|
Conduit diameter |
6-25mm |
|
Maximum stripping length |
Front end 400mm/Rear end 250mm |
|
Cutting accuracy |
0.1%L+1 |
|
Cutting depth unit |
0.01mm |
|
Maximum number of stripping layers |
6 layers |
|
Stripping method |
Cutter/stripper/piercer |
|
Power supply |
AC 220V 50/60Hz |
|
Productivity |
200-450pcs/h |
|
Weight |
304kg |
|
Dimensions |
1500*700*1450mm |
Feature

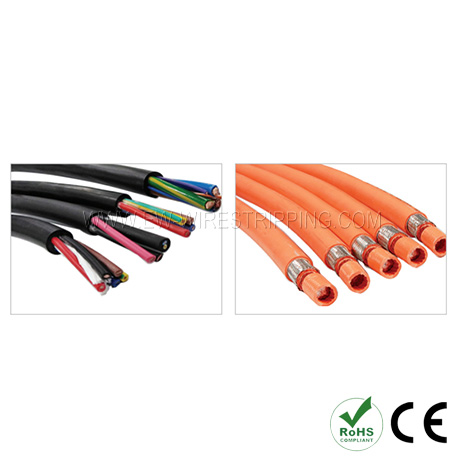

1. Mainly used for cutting and stripping of EV cables and multi-layer cables.
2. The servo motor controls the feeding mechanism, automatically adjusts the center, and feeds accurately.

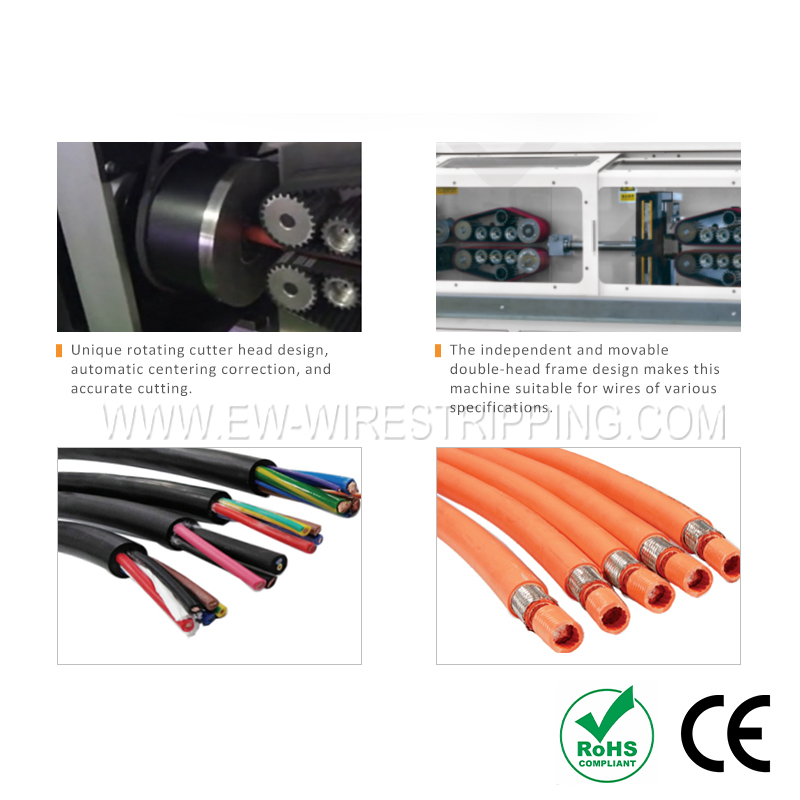

3. Unique rotating cutter head design, automatic centering correction, and accurate cutting.
4. The machine is equipped with an encoder to correct the length of the wire and the length of the stripping head.
5. The independent and movable double-head frame design makes this machine suitable for wires of various specifications.
6. This machine has a wire-saving function.
7. It can be customized as a right-in and left-out device.
Application Range
More Info
Model：Large square rotary stripping and cutting machine(6-120mm2)
Model:EW-3190
Stripping range:6-120mm2
Conduit diameter:6-25mm
Maximum stripping length:Front end 400mm/Rear end 250mm
Cutting accuracy:0.1%L+1
Cutting depth unit:0.01mm
Maximum number of stripping layers:6 layers
Stripping range:6-120mm2
Conduit diameter:6-25mm
Maximum stripping length:Front end 400mm/Rear end 250mm
Cutting accuracy:0.1%L+1
Cutting depth unit:0.01mm
Maximum number of stripping layers:6 layers
