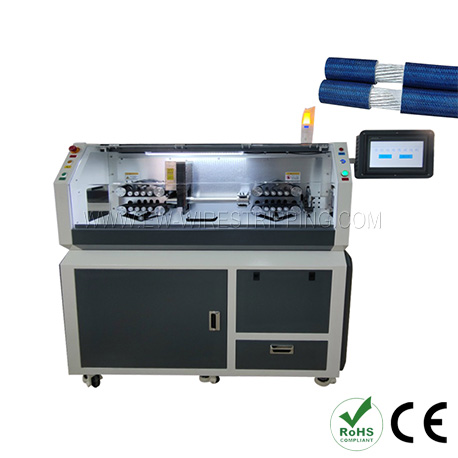

Fully electric automatic large cable computer wire cutting and stripping machine (16-300mm2)

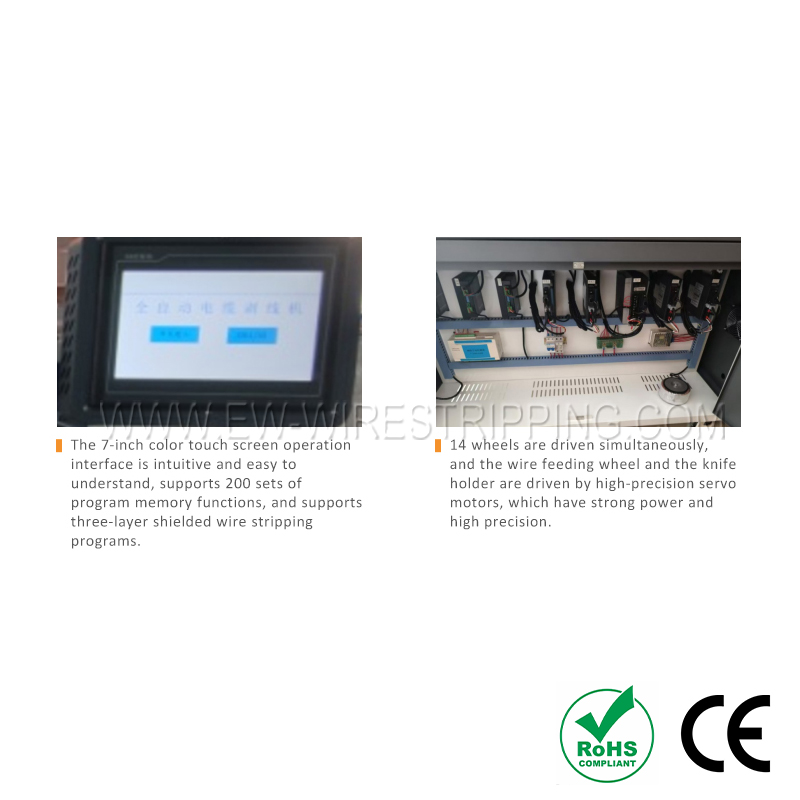

1. Fully electric large cable computer stripping machine. 14 wheels are driven simultaneously, and the wire feeding wheel and the knife holder are driven by high-precision servo motors, which have strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. The 7-inch color touch screen operation interface is intuitive and easy to understand, supports 200 sets of program memory functions, and supports three-layer shielded wire stripping programs. The power is doubled on the basis of the original large cable stripping machine. The output is 2-3 times that of ordinary wire stripping machines! Save a lot of labor!

2. The clamping force of the inlet and outlet wheels can be set directly in the program without manually adjusting the pressure of the wheels. The outlet wheel also has the function of automatically lifting the wheel. When stripping the wire head, the outlet wheel can be automatically lifted up for avoidance, which greatly increases the stripping length range of the wire head. The height of the outlet wheel can also be set directly in the program.

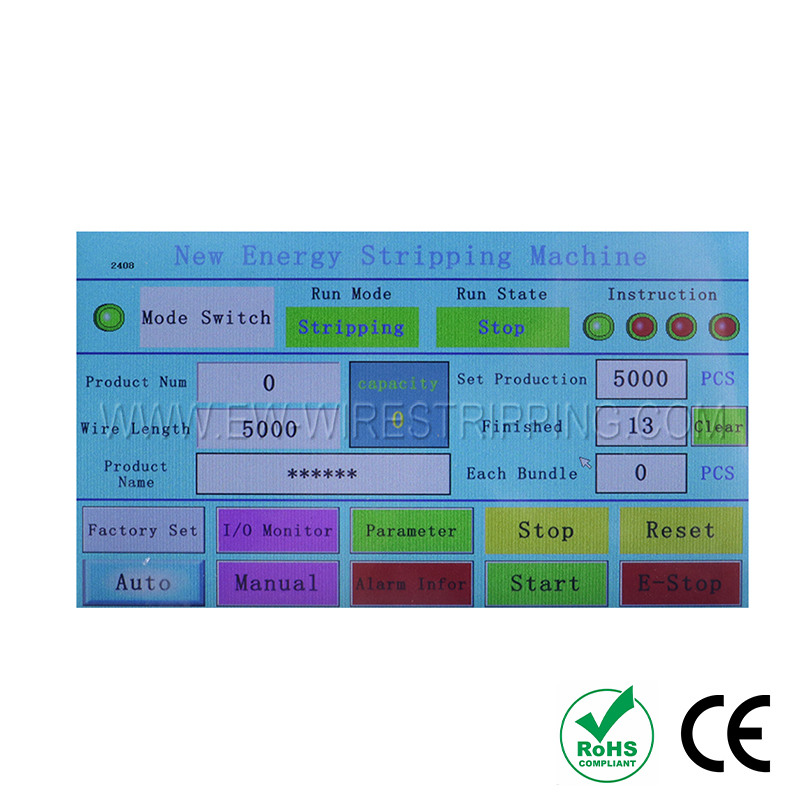

3. The color touch screen operation interface makes all parameters intuitive and easy to understand. You can quickly operate the machine with simple training. The machine also has a three-layer stripping program, which can be divided into three layers, or up to three times when the stripping length is long; it provides 200 sets of program memory functions, which can store the processing parameters of different wires in different program numbers.

4. It can be equipped with wire splitting jigs, scratching jigs, and inkjet printers.
