Test range: 0-980N
Resolution: 0.01 N
Device Accuracy: precision grade 0.05%
Traction speed: 25/50/100mm/min, also can be set by yourself
Maximum stroke: 48MM
Electrical connection: DC19V adapter
Dimensions (L x W x H): 375 x 160 x 160mm
Weight: 9Kg
1.Language selection: Chinese/English
2.Unit selection: Newton / kg / lb unit conversion.
3.Data display: real-time display of the value of tension during the test, pull-off test results show the peak tension and test curve.
4.Holding function: Holding force test, can set the value of holding force and holding time, hold the end of the test force test to display the test results.
5.Speed setting: test speed can be set (0 ~ 999mm/min), and can be set to the boot state.

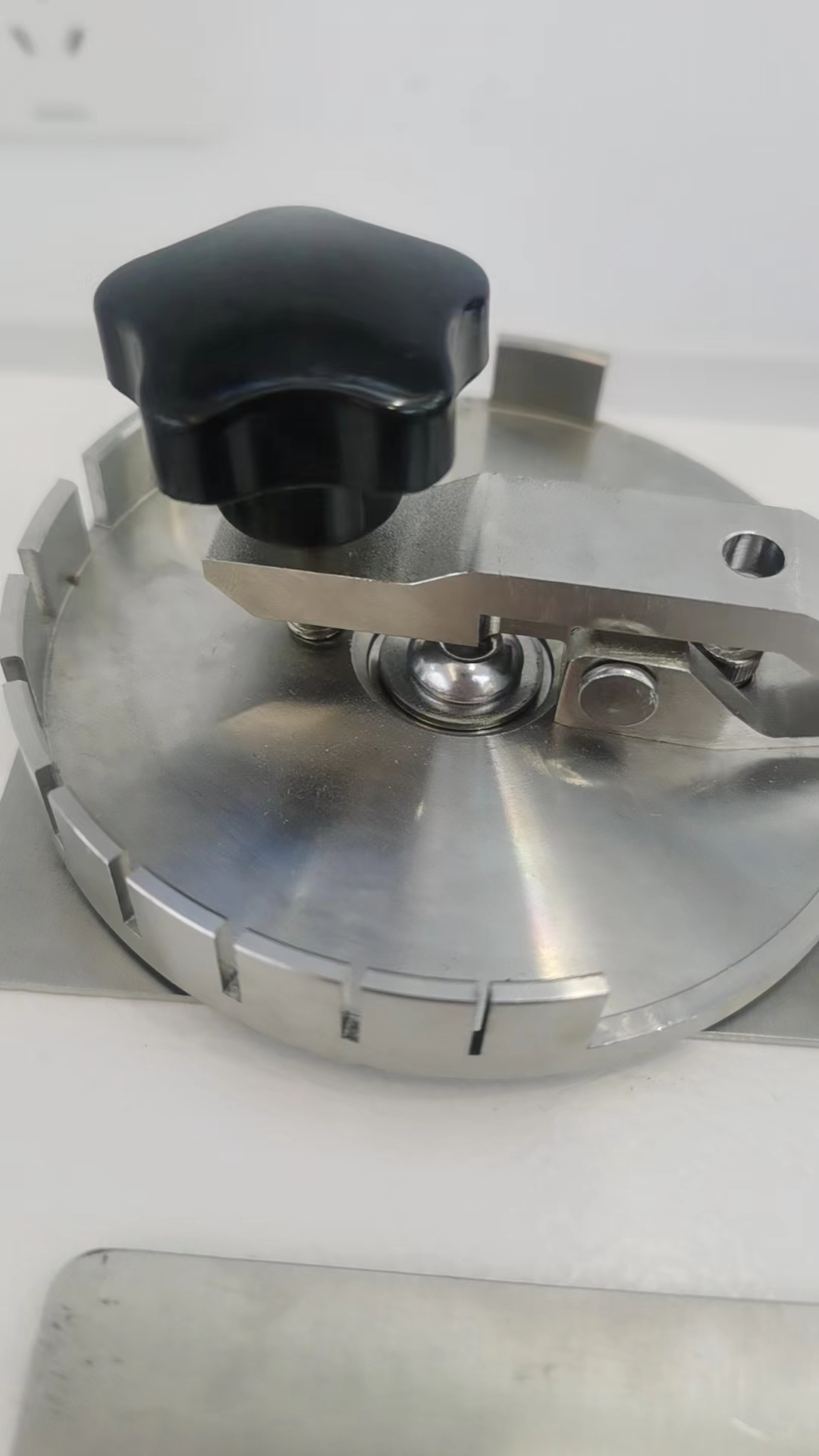

6.Fixture function: rotary disc structure. Communication interface: Self-contained USB interface.
7.MES function: automatically upload MES system after testing.
8.System setting: comes with parameter setting interface, can be convenient to set the system parameters.
9.Mes system (data upload terminal MES system)
Model

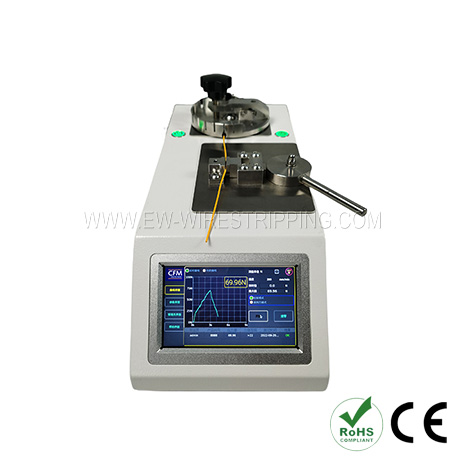

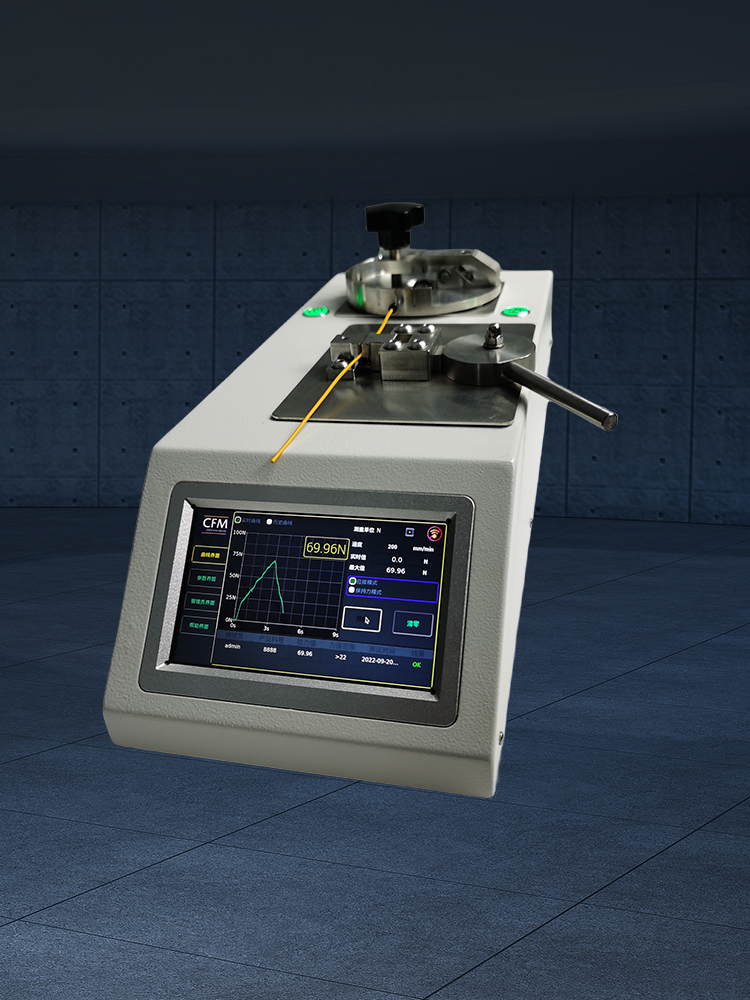

Terminal tensile testing machine
Test range
0-980N
Resolution
0.01 N
Device Accuracy
Accuracy Class 0.05%
Traction speed
25/50/100 mm/minute can also be set by yourself
Interface
USB Host, USB Device
Electrical connection
DC19V adapter
Dimensions (L x W x H)
375 x 160 x 160mm
Maximum Stroke
48MM
Weight
9 Kg
