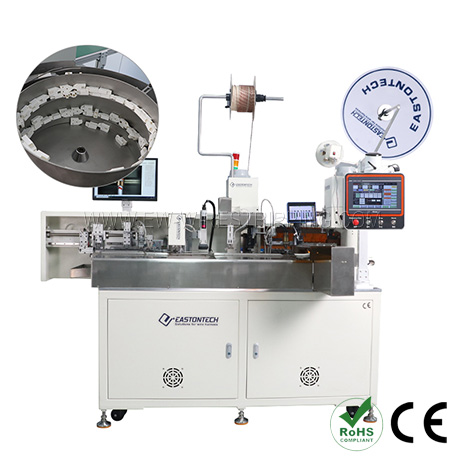

Fully Automatic Hot Blade Double Side Crimping and Single Side Housing Insertion Machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8195 |
|
Applicable wire range |
0.5-0.75mm2(AWG18-20) |
|
Stripping length |
1-16mm |
|
Cut precision |
±0.1 mm |
|
Cutting length |
50-500mm |
|
Capacity |
400-450pcs/hour |
|
Crimping force |
2.0T |
|
Stroke |
30mm |
|
Air pressure |
0.5-0.7Mpa |
|
Wire color |
1-3color wires(must be the same specification） |
|
Room Moisture |
30%-80%RH |
|
Detection |
Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error |
|
Power |
220V/110V/50/60HZ |
|
Operating temperature range |
15℃ — 30℃ |
|
Dimension |
1560*1100*1600mm |
|
Weight |
700Kg |
|
Foot pedal start |
N/A |
Feature
*Equipment function: the front and rear ends are pierced through the shell, and the front end can be pierced through the shell and the rear end can be dipped in tin
*Cost saving: the front and rear ends are pressed through the shell, and the rear end is dipped in tin. All processes are automatically completed, saving production costs for customers.
*Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.
*High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.
*Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices
Application Range
More Info
Model：Fully Automatic Hot Blade Double Side Crimping and Single Side Housing Insertion Machine
Model:EW-8195
Applicable wire range:0.5-0.75mm2(AWG18-20)
Stripping length:1-16mm
Cut precision:±0.1 mm
Cutting length:50-500mm
Capacity:400-450pcs/hour
Crimping force:2.0T
Air pressure 0.5-0.7Mpa
Wire color 1-3color wires(must be the same specification）
Applicable wire range:0.5-0.75mm2(AWG18-20)
Stripping length:1-16mm
Cut precision:±0.1 mm
Cutting length:50-500mm
Capacity:400-450pcs/hour
Crimping force:2.0T
Air pressure 0.5-0.7Mpa
Wire color 1-3color wires(must be the same specification）
