Conduit tube size:Inner 10/15/20/26/32mm
Conductor cross-section :4 - 150 mm2
Cutting length:1 - 500,000 mm
Stripping length (side I):0 - 500 mm
Stripping length (side II):0 - 250 mm
Maximum guide tube diameter :32 mm
1. New mode cable processing equipment that controlled by micro computer, especially for processing the high voltage power cable in the industries of new energy motor, power charging station, electronic control, BMC and etc. which essentially solves the problem in processing the big power cable;
2. Automatic wire cutting, two ends stripping, multi-layers stripping at the same time;
3. Industrial level control chip and high precise servo driving to ensure its high speed and stable running;
4. PLC control system , touching screen operating;
5. Automatic wire diameter adjusting, different power cable doesn't need to change the cutting tools;

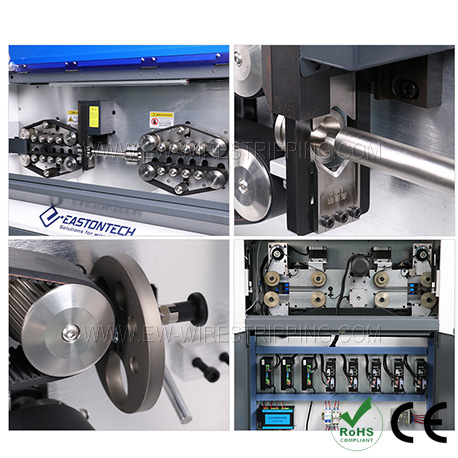

6. Belt style driving without any pressing marks
7. The cable (within 150 mm2) can be easily processed , the strong driving force ensures the high working efficiency.Model

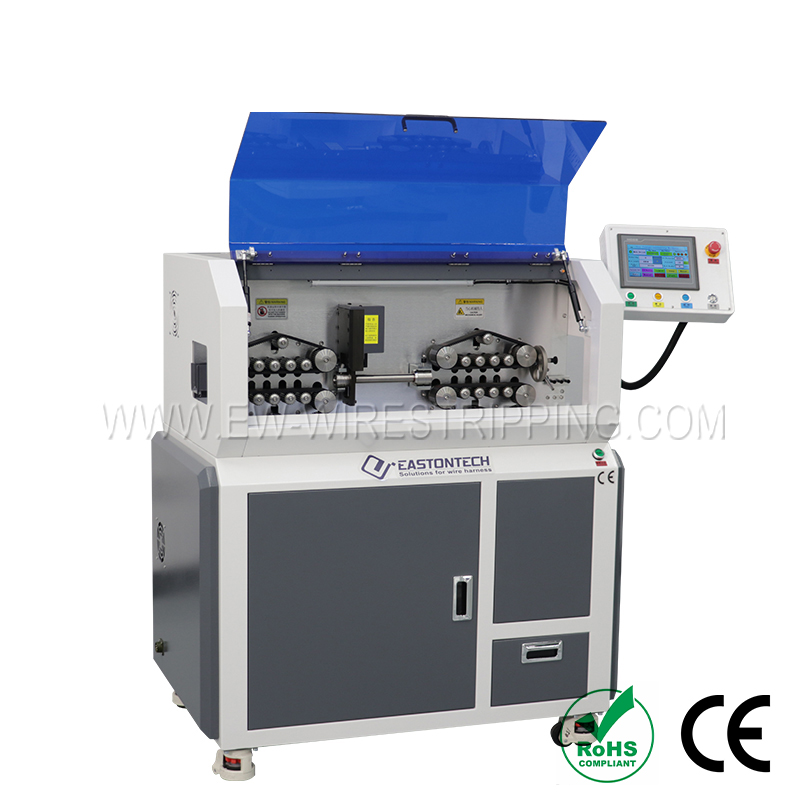

EW-05E
Stripping capability

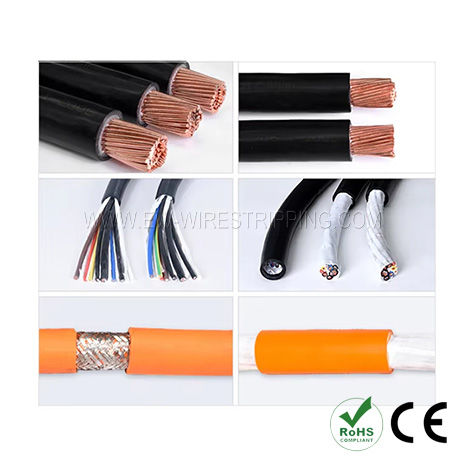

3-layer stripping for shield cable
Conduit tube size
Inner 10/15/20/26/32mm
Conductor cross-section
4 - 150 mm2
Cutting length
1 - 500,000 mm (can be customized)
Cutting length tolerance
< 0.002 * L
Stripping length (side I)
0 - 500 mm
Stripping length (side II)
0 - 250 mm
Maximum guide tube diameter
32 mm
Min intermediate retention length
70mm
Display mode
7-inch touch screen
Memory capacity
200 programs
Foot pedal start
N/A
Productivity
600 - 1000 pcs./h
Power supply
110, 220 V (50 - 60 Hz)
Power
1500 W
Weight
270 kg
Dimension
1080 * 650 * 1200 mm
