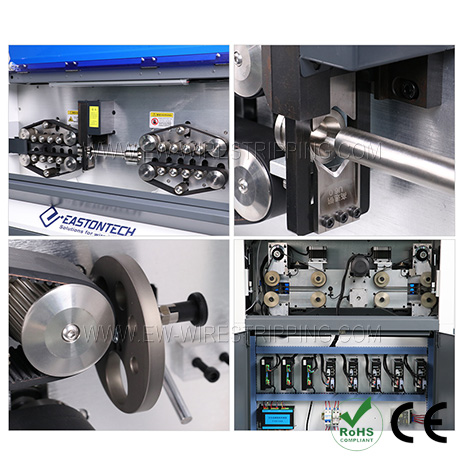

Wire Cutting & Stripping Machine with coiling device(4-150mm2)
Cut&Strip
Technical Data
|
Model |
EW-05E+C |
|
Stripping capability |
3-layer stripping for shield cable |
|
Conduit tube size |
Inner 10/15/20/26/32mm |
|
Conductor cross-section |
4 - 150 mm2 |
|
Cutting length |
1 - 500,000 mm (can be customized) |
|
Cutting length tolerance |
< 0.002 * L |
|
Stripping length (side I) |
0 - 500 mm |
|
Stripping length (side II) |
0 - 250 mm |
|
Maximum guide tube diameter |
32 mm |
|
Min intermediate retention length |
70mm |
|
Display mode |
7-inch touch screen |
|
Memory capacity |
200 programs |
|
Foot pedal start |
N/A |
|
Productivity |
600 - 1000 pcs./h |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
1500 W |
|
Weight |
270 kg |
|
Dimension |
1080 * 650 * 1200 mm |
|
Coil inner diameter |
130-380 mm |
|
Coil outer diameter |
400-680mm |
|
Coiling speed |
1.5 m/s (intelligent speed change) |
|
Driving mode |
Servo motor |
|
Safety protective cover |
Available |
|
Weight |
70KGS |
|
Dimension |
750*750*130mm |
Feature
1. New mode cable processing equipment that controlled by micro computer, especially for processing the high voltage power cable in the industries of new energy motor, power charging station, electronic control, BMC and etc. which essentially solves the problem in processing the big power cable;
2. Automatic wire cutting, two ends stripping, multi-layers stripping at the same time;
3. Industrial level control chip and high precise servo driving to ensure its high speed and stable running;
4. PLC control system , touching screen operating;
5. Automatic wire diameter adjusting, different power cable doesn't need to change the cutting tools;
6. Belt style driving without any pressing marks
7. The cable (within 150 mm2) can be easily processed , the strong driving force ensures the high working efficiency.
Application Range
More Info
Model：Wire Cutting & Stripping Machine with coiling device(4-150mm2)
Model:EW-05E+C
Conduit tube size:Inner 10/15/20/26/32mm
Conductor cross-section :4-150 mm2
Cutting length:1-500,000mm
Stripping length (side I):0 - 500 mm
Stripping length (side II):0 - 250 mm
Maximum guide tube diameter:32 mm
Min intermediate retention length:70mm
Productivity:600 - 1000 pcs./h
Coil inner diameter:130-380 mm
Coil outer diameter:400-680mm
Conduit tube size:Inner 10/15/20/26/32mm
Conductor cross-section :4-150 mm2
Cutting length:1-500,000mm
Stripping length (side I):0 - 500 mm
Stripping length (side II):0 - 250 mm
Maximum guide tube diameter:32 mm
Min intermediate retention length:70mm
Productivity:600 - 1000 pcs./h
Coil inner diameter:130-380 mm
Coil outer diameter:400-680mm
