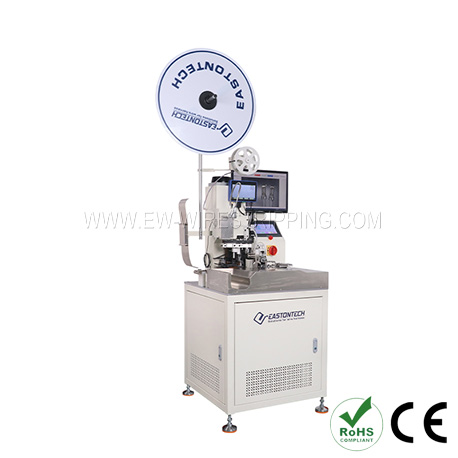

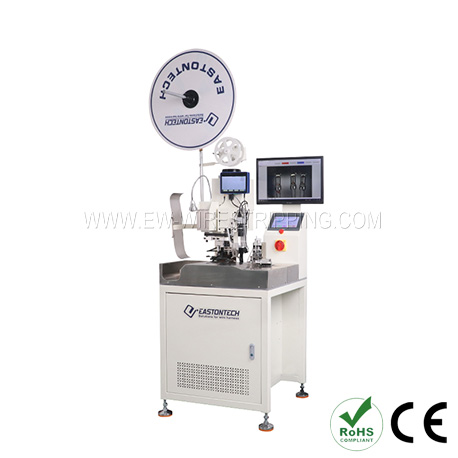

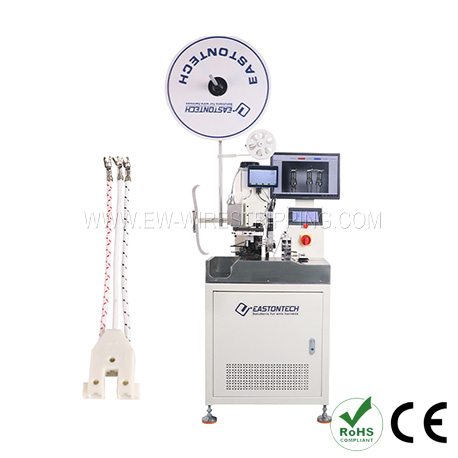

Single-Head Three-Wire Terminal Crimping Machine
Electrical
Technical Data
|
Model |
EW-5465 |
|
Wire diameter range |
0.5-0.75mm2.(AWG18-20) |
|
Cutting to same length range |
1-10mm
|
|
Stripping length |
1.0 mm — 16.0 mm |
|
Crimping machine power |
2T |
|
Crimping stroke |
30mm |
|
Compressed air |
0.5MPa |
|
Productivity |
600 sets. Changes depending on the person’s line setting speed. |
|
Working temperature range |
1℃ — 30℃ No condensation |
|
Weight |
about 200kg |
|
Warranty period |
1 year |
Feature

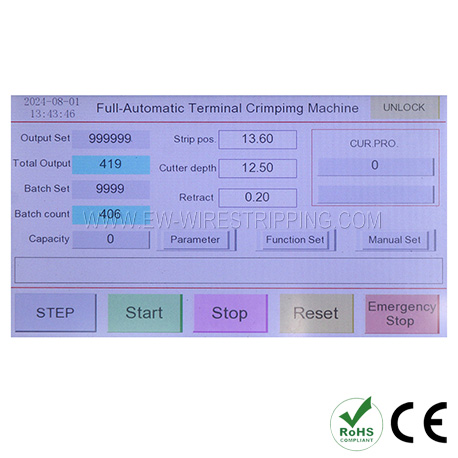

1.I/O Monitor：quickly investigate failures in connected peripheral devices.
2.CCD inspection: inspect the terminal crimping quality from the appearance of the terminal
3.CFM inspection: inspect the terminal crimping quality by the internal pressure of each crimping

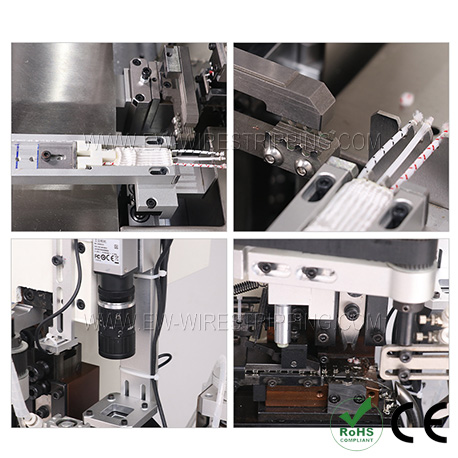

4.The crimping position and depth of the three wires can be adjusted independently and separately.And each position can be turned on and off independently.

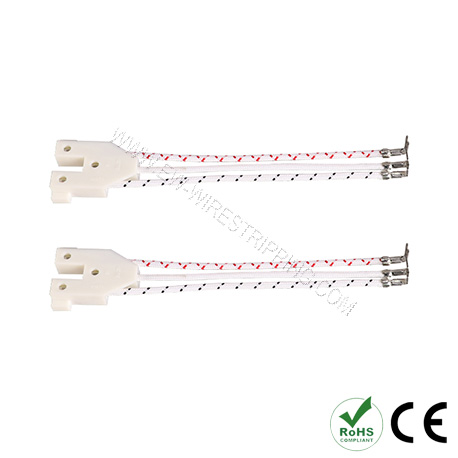

Application Range
More Info
Model：Single-Head Three-Wire Terminal Crimping Machine
Model: EW-5465
Wire diameter range: 0.5-0.75mm2.(AWG18-20)
Cutting to same length range: 1-10mm
Stripping length: 1.0 mm — 16.0 mm
Crimping machine power: 2T
Crimping stroke: 30mm
Compressed air: 0.5MPa
Wire diameter range: 0.5-0.75mm2.(AWG18-20)
Cutting to same length range: 1-10mm
Stripping length: 1.0 mm — 16.0 mm
Crimping machine power: 2T
Crimping stroke: 30mm
Compressed air: 0.5MPa
