Movable tape winding machine

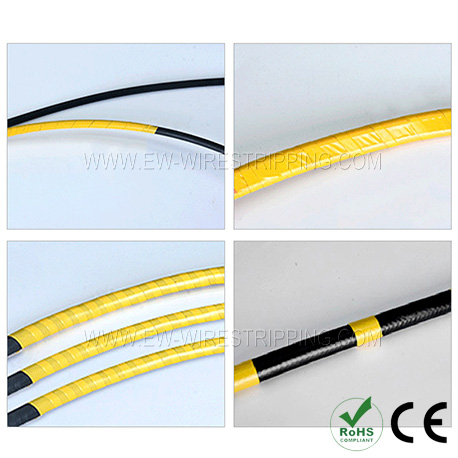

Tape Bundling
Technical Data
|
Model |
EW-1805 |
|
Applicable tape |
PVC, paper tape, cloth base tape, etc |
|
Product length |
230mm≤ length ≤600mm |
|
Product diameter |
3mm≤ diameter ≤6mm |
|
Tape width |
≤ 30mm |
|
Tape cutting length |
20mm≤ Tape cutting length ≤60mm |
|
Distance from end position |
≥40mm |
|
Tapping position accuracy |
±2 |
|
Tapping overlap |
±2 |
|
Work efficiency |
5s/position |
|
Machine power |
250W |
|
Power supply |
110/220V/50/60HZ |
|
Air compressor |
0.5-0.7MPa |
|
Weight |
100 kg |
|
Dimension |
800*550*1350mm |
|
Pedal |
Yes |
Feature
· Winding interval distance position is digitally adjustable;
· Tape winding stability;
· With automatic clamping, winding function;
Application Range
More Info
Model：Movable tape winding machine
Model:EW-1805
Product length: 230mm≤ length ≤600mm
Product diameter:3mm≤ diameter ≤6mm
Tape width:≤ 30mm
Tape cutting length:20mm≤Tape cutting length≤60mm
Distance from end position:≥40mm
Product length: 230mm≤ length ≤600mm
Product diameter:3mm≤ diameter ≤6mm
Tape width:≤ 30mm
Tape cutting length:20mm≤Tape cutting length≤60mm
Distance from end position:≥40mm
