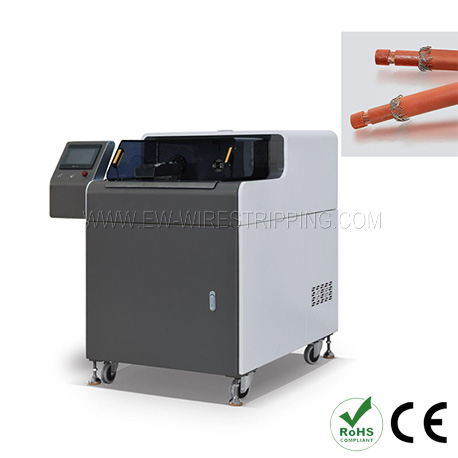

Model： Cable Strip Shield Net Cutting and Foldingg Machine
Scan the QR code
Model EW-0625
Stripping length 1-130mm
Power 1.5KW
Function Cable outer sheath stripping + braid cutting + braid flipping + inner sheath stripping
Remaining length of shielding 5-30mm
Stripping length 1-130mm
Power 1.5KW
Function Cable outer sheath stripping + braid cutting + braid flipping + inner sheath stripping
Remaining length of shielding 5-30mm
1. Cable outer sheath stripping + braid cutting + braid flipping + inner sheath stripping, customers can choose according to their own product needs
2. Turn off one of the functions, which can be freely combined as follows:
1) outer sheath stripping + braid cutting + braid flipping + inner sheath stripping;
2) braid cutting + braid flipping + inner sheath stripping (when the outer sheath has been stripped)
3) outer sheath stripping + inner sheath stripping (the braid length is the same as the inner core stripping)
EW-0625
Stripping length
1-130mm
Function
Cable outer sheath stripping + braid cutting + braid flipping + inner sheath stripping
Remaining length of shielding
5-30mm
Remaining length of shielding mesh
Dimension
1200 * 800 * 1200mm
