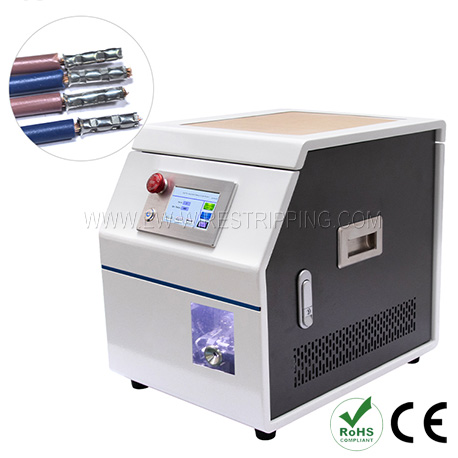

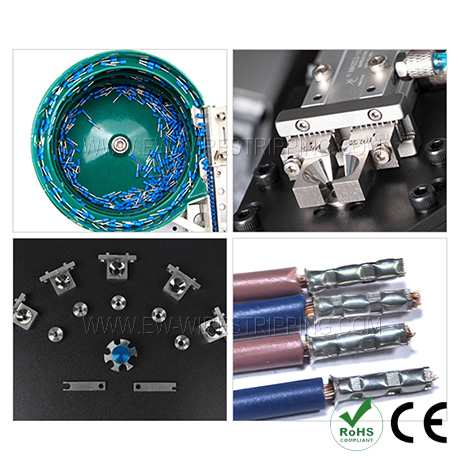

0.5-4.0mm2 Noninsulated tube Strip&Crimp Machine with Wire twisting
Electrical
Technical Data
|
EW-5470 |
|
|
Control Mode |
human-machine interface, electronic control, pneumatic control |
|
Operation Mode |
Automatic trigger operation and manual operation |
|
Twisting Function |
Yes |
|
Wire Size |
0.5-4.0mm² Square shape |
|
Stripping Length |
Max.17mm |
|
Max Tube Length |
12mm |
|
Production Capacity |
2.8s /wire |
|
Air Supply |
0.6-0.8Mpa |
|
Working Temperature |
10～25℃ |
|
Power Source |
AC220V/110V/50/60HZ |
|
Weight |
40KG |
|
Dimensions |
W350mm×L450mm×H400mm |
Feature
· Small in size and easy to operate, can be placed in the final assembly site.
· A variety of terminals share one machine, saving cost and sharing.
· Fully sealed and peeled and crimped for safe operation.
· Multiple processes are combined to save labor and reduce product processing costs
Application Range
More Info
Model：0.5-4.0mm2 Noninsulated tube Strip&Crimp Machine with Wire twisting
Model:EW-5470
Wire Size:0.5-4.0mm2(Standard),0.15-0.35mm2(Customized)

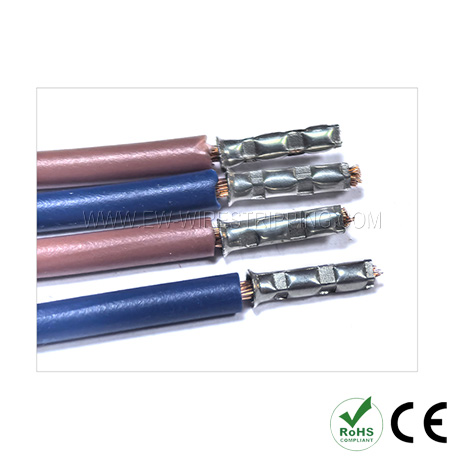

Terminal Size: Insulator length ≤7.5mm, conductor length≤10mm
Stripping Length: Max.17mm
Air Supply:0.6-0.8Mpa
Operation Mode:Automatic trigger operation and manual operation
Wire Size:0.5-4.0mm2(Standard),0.15-0.35mm2(Customized)
Terminal Size: Insulator length ≤7.5mm, conductor length≤10mm
Stripping Length: Max.17mm
Air Supply:0.6-0.8Mpa
Operation Mode:Automatic trigger operation and manual operation
