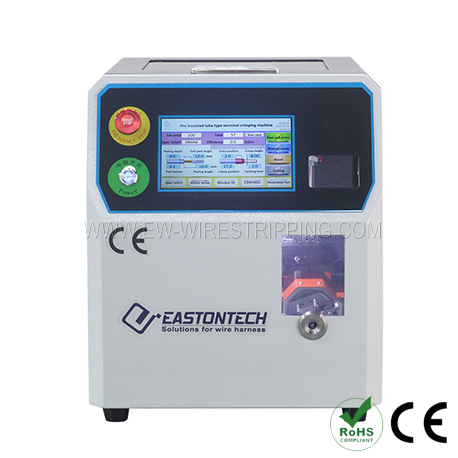

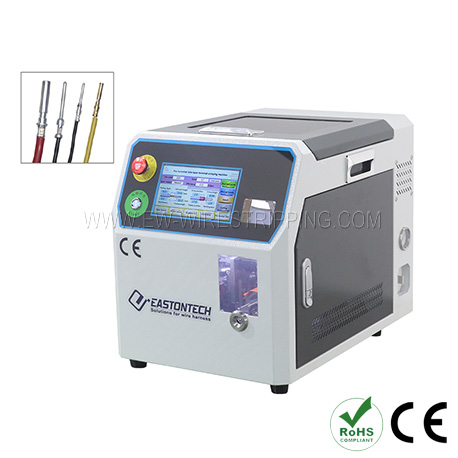

0.5-4.0mm2 Loose Pin Connector Strip&Crimp Machine
Electrical
Technical Data
|
Model |
EW-5745 |
|
Operation Mode |
Automatic trigger operation and manual operation |
|
Wire Size |
0.5-4.0mm2 (<0.5mm2 , need samples customize and test) |
|
Terminal Size |
Insulator length <11mm ,conductor length<20mm |
|
Stripping Length |
6-30mm |
|
Production Capacity |
3.2s /wire |
|
Power Supply |
AC220V/50Hz |
|
Power |
1500W |
|
Air Supply |
0.5-0.6Mpa |
|
Weight |
62KG |
|
Dimensions |
360*520*425mm |
Feature
· Small in size and easy to operate, can be placed in the final assembly site.
· A variety of terminals share one machine, saving cost and sharing.
· Fully sealed and peeled and crimped for safe operation.
· Multiple processes are combined to save labor and reduce product processing costs
Application Range
More Info
Model：0.5-4.0mm2 Loose Pin Connector Strip&Crimp Machine
Model：EW-5475
Wire Size：0.5-4mm2
Strip Length：6-30mm
Production Capacity：3.2s /wire
Air Supply：0.5-0.6Mpa
Wire Size：0.5-4mm2
Strip Length：6-30mm
Production Capacity：3.2s /wire
Air Supply：0.5-0.6Mpa
