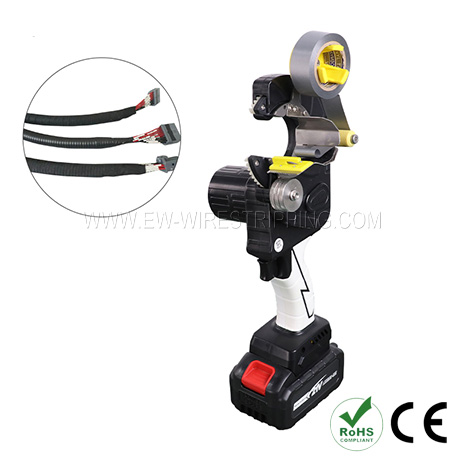

Hand-held Tape Wrapping Machine(5-25mm OD)
Tape Bundling
Technical Data
|
Model |
EW-1660-1 |
|
Bottom plate |
N/A |
|
Wrap OD |
2 - 35 mm |
|
Tape material |
PVC, adhesive tape and felt |
|
Tape width |
9 - 25 mm |
|
Wrap type |
Full wrap, half-overlay wrap |
|
Wrap speed |
2 - 4 circles/s (adjustable) |
|
Charging voltage |
110 - 240 V (50/60 Hz) |
|
Battery life |
5 hours |
|
Weight |
1.75 kg |
|
Air input |
N/A |
|
Pedal |
Yes |
|
Dimension |
Feature
1.EW-1660-1 Lithium battery hand held wire taping machine with a built-in 6000 mA lithium battery.
2. lt can be used continuously for about 5 hours when fully charged.
3. lt is very small and flexible.
4.The weight of the machine is only 1.75kg, and the open design can start wrapping from any position ofthe wire harness.
5. lt is easy to skip the branches ,suitable for tape wrapping of wire harnesses with branches, widely usedfor wire harness assembly board to assemble wire harness.
6. Support full wrap, half-overlay wrap.
7.Ergonomic and dynamic design, independent use of the configuration of the belt slant belt, effectivelyreduce the operator in the long working process of fatigue.
8.The wiring harness wrapping process is smooth, and the appearance is beautiful and smooth
Application Range
More Info
Model：Hand-held Tape Wrapping Machine(5-25mm OD)
Model:EW-1660-1
Bottom plate:N/A
Wrap OD:2 - 35 mm
Tape material:PVC, adhesive tape and felt
Tape width:9 - 25 mm
Wrap type:Full wrap, half-overlay wrap
Wrap speed:2 - 4 circles/s (adjustable)
Battery life:5 hours
Bottom plate:N/A
Wrap OD:2 - 35 mm
Tape material:PVC, adhesive tape and felt
Tape width:9 - 25 mm
Wrap type:Full wrap, half-overlay wrap
Wrap speed:2 - 4 circles/s (adjustable)
Battery life:5 hours
