Stripping Side A:7.5mm Side B:11mm
Cut precision ±(0.5+0.002*L) mm, L=cut length
Cutting length 1-1000mm
Capacity 6000-8000pcs/hour
Crimping force 2.0T
Tinning length 3-7mm
Air pressure 0.5-0.7Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is optional)
Power 220V/110V/50/60HZ
Applicators 30mm or 40mm strokes for optional
Dimension 1700*720*1500mm
Weight 500Kg
Power cord plug European, USA, Chinese plug

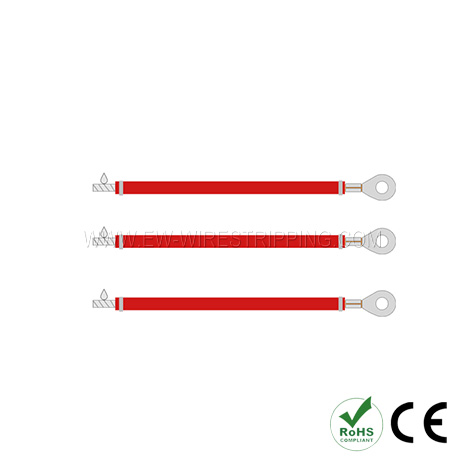

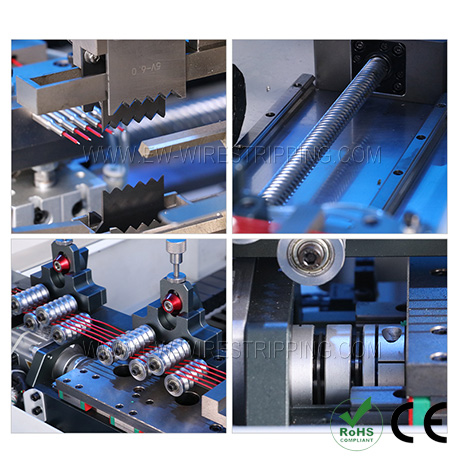

- 1. All motors adopt hich-precision servo motors, and the components are made with precision.
2. Adopting the concept of modular flexible design, one machine can easily process many different products, and each function almodule can be opened or closed freely in the program. For example, you can turn off the twisted wire function and use it as arordinary tinning terminal machine, When replacing a terminal, only the corresponding crimping die needs to be replaced. The useof the machine is fexible. Ater the current product is produced. it wil not cause idle waste of the machine. and it can be easiiswitched to produce other products.
3. Color LCD touch screen operation interface, the parameters are intuitive and easy to understand:
4. Equipped with MITSUBISH servo motors and SMC pneumatic cylinders, so the wire cutting, stripping,crimping, tin soldering andflux dipping positions can be precisely controlled:
5. The solder wire can be fed into the solder pot automatically, and the soldering smoke eater can take out the tin smoke in time toensure the working environment is good for operators' health. Model

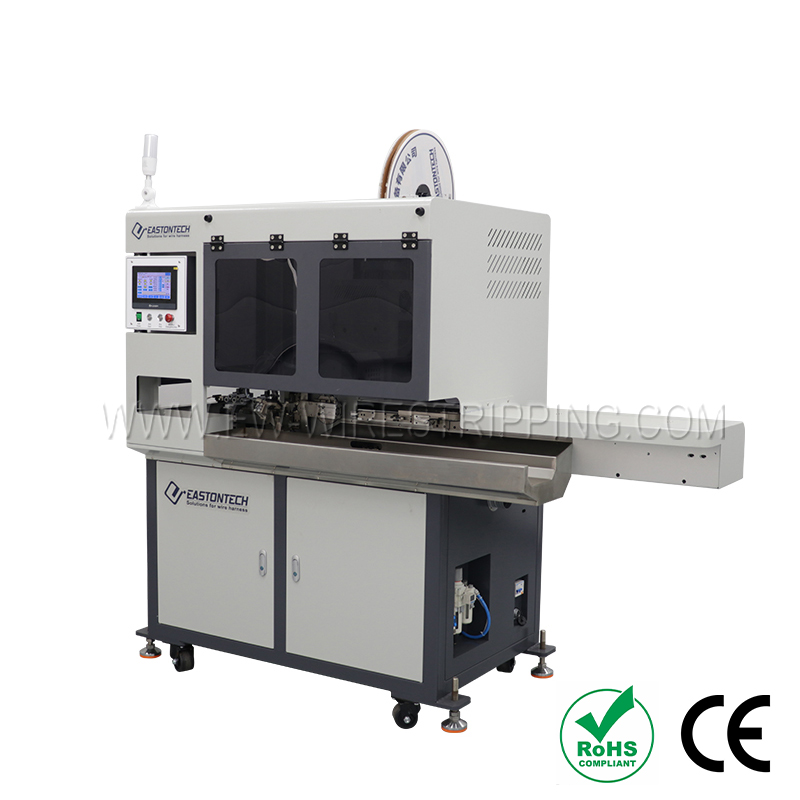

EW-8290
Applicable wire range
AWG30-AWG18
Stripping
Side A:7.5mm Side B:11mm
Cut precision
±(0.5+0.002*L) mm, L=cut length
Cutting length
1-1000mm
Capacity
6000-8000pcs/hour
Crimping force
2.0T
Tinning length
3-7mm
Air pressure
0.5-0.7Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is optional)
Power
220V/110V/50/60HZ
Applicators
30mm or 40mm strokes for optional
Dimension
1700*720*1500mm
Weight
500Kg
Power cord plug
European, USA, Chinese plug
