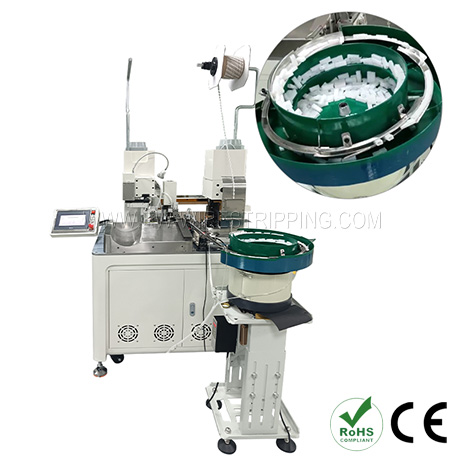

Double-end Stripping Crimping and Single Hole Insert Housing Machine AWG26-AWG14
Cut Strip Terminate& Solder
298
Model：Double-end Stripping Crimping and Single Hole Insert Housing Machine AWG26-AWG14
Model：EW-8880
Applicable wire range：AWG26-AWG14
Stripping length：Front: 0.5-8mm; Rear: 0.1-10mm
Cutting length：60-99999mm
Capacity：1200 pcs/hour(L=60-100mm)
Applicable wire range：AWG26-AWG14
Stripping length：Front: 0.5-8mm; Rear: 0.1-10mm
Cutting length：60-99999mm
Capacity：1200 pcs/hour(L=60-100mm)
Technical Data
|
Model |
EW-8880 |
|
Applicable wire range |
AWG26-AWG14 |
|
Stripping length |
Front: 0.5-8mm; Rear: 0.1-10mm |
|
Cut precision |
±(0.2+0.002*L) mm, L<100mm ,L=cut length ±(0.5+0.002*L) mm, L>100mm, L=cut length |
|
Cutting length |
60-99999mm |
|
Capacity |
1200 pcs/hour(L=60-100mm) |
|
Crimping stroke |
30mm/ 40mm |
|
Air pressure |
0.5Mpa(5kgf / cm2) |
|
Detection |
Wire run out, low air pressure, terminate error (Crimping force monitor is for optional) |
|
Power |
220V/110V/50/60HZ |
|
Dimension |
1000*750*1800mm |
|
Weight |
300Kg |
|
Pedal |
N/A |
|
Function |
Wire cut , One side strip , Double side strip , Double side crimp, One side crimp another side half strip, One side housing |
Feature
● Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.
● High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.
● Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices .
