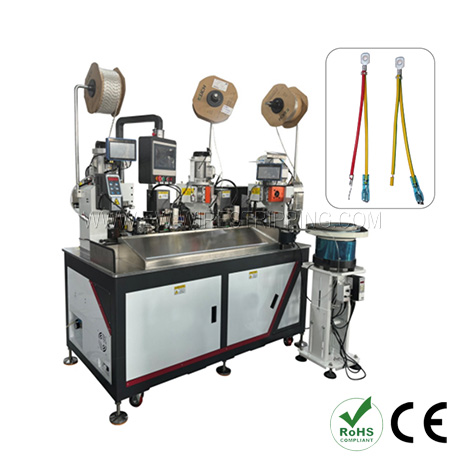

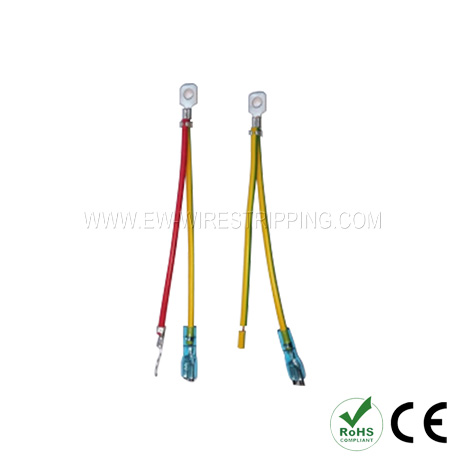

Fully Automatic Two Wire Joint Crimping and one head sheathed inserting machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8340 |
|
Wire range |
AWG26#-AWG14# |
|
Cut length |
80mm-9999mm |
|
Strip length |
1-10mm |
|
Crimp force |
2.0T-3.0T |
|
Crimp stroke: |
30mm |
|
Applicable mold |
OTP mold |
|
Detection device |
Air pressure detection, wire presence detection, crimp terminal detection, wire knot detection, pressure monitoring (optional) |
|
Control method |
Microcontroller control |
|
Function |
Single-wire single-end crimping, single-wire double-end crimping, double-wire parallel crimping, double-wire single-end crimping, single-end sheathing, automatic setting of incision depth, automatic setting of terminal crimping position |
|
Production capacity |
Double-wire three-in-one crimping through sheath 1500-2000 strips/hour (depending on the material terminal) |
|
Compressed air |
0.5MPa-0.8 MPa（170N/min） |
|
Power supply: |
Single-phase AC220V 50/60Hz 10A |
|
Dimensions |
Length 1700*width 820*height 1800 (mm) |
|
Main component brand |
Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Reisai servo motor, Dacheng slide rail, imported bearings from Japan. |
|
Pedal control |
N/A |

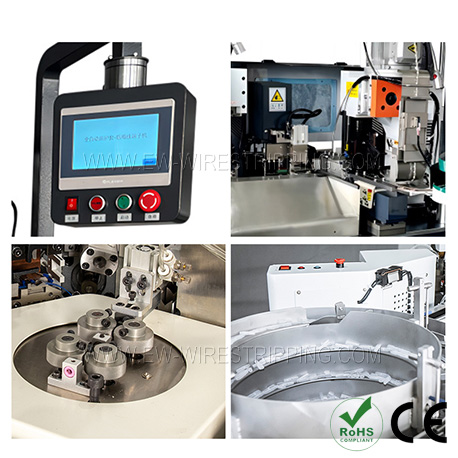

Feature
1. This machine adopts touch screen parameter setting, and the self-developed control system is equipped with high-speed servo drive + step drive combined with pneumatic, which has extremely high crimping efficiency and stable dimensional accuracy control.
2. Precision ball screw with linear guide transmission makes stripping and crimping more accurate and effective, with large torque, low noise and long life.
3. The cutter is set as a group of 6 pieces, and the tangent and other two ends are stripped at the same time to make the speed faster.
4. Wall-mounted rotary touch screen adjustment, more flexible application operation. The crimping of both ends + one end through the sheath and positioning are completed in one integration, which greatly improves the efficiency.

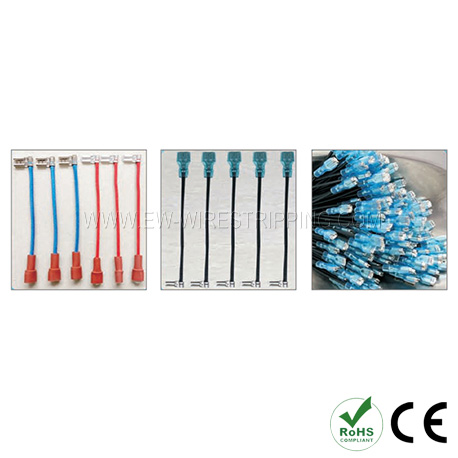

Application Range
More Info
Model：Fully Automatic Two Wire Joint Crimping and one head sheathed inserting machine
Model:EW-8340
Wire range:AWG26#-AWG14#
Cut length:80mm-9999mm
Strip length:1-10mm
Crimp force:2.0T-3.0T
Crimp stroke:30mm
Compressed air:0.5MPa-0.8 MPa（170N/min）
Wire range:AWG26#-AWG14#
Cut length:80mm-9999mm
Strip length:1-10mm
Crimp force:2.0T-3.0T
Crimp stroke:30mm
Compressed air:0.5MPa-0.8 MPa（170N/min）
