Fully automatic single side wire crimping housing insertion and tinning machine
Cut Strip Terminate& Solder
108

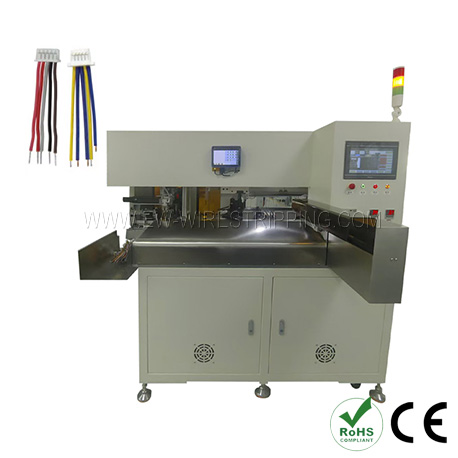

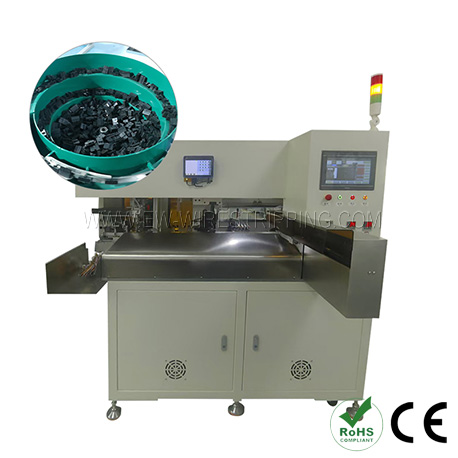

Model：Fully automatic single side wire crimping housing insertion and tinning machine
Model:EW-8085
Applicable wire range:AWG#20—#30（OD<2.5mm）
Tinning/Stripping length:1-10mm
Cutting length:50-500mm
Capacity:3600pcs/hour (L=100mm)
Crimping force:2.0T
Air pressure:0.5-0.7Mpa
Wire color:2-6 color wires(must be the same specification）
Applicable wire range:AWG#20—#30（OD<2.5mm）
Tinning/Stripping length:1-10mm
Cutting length:50-500mm
Capacity:3600pcs/hour (L=100mm)
Crimping force:2.0T
Air pressure:0.5-0.7Mpa
Wire color:2-6 color wires(must be the same specification）
Technical Data
|
Model |
EW-8085 |
|
Applicable wire range |
AWG#20—#30（OD<2.5mm） |
|
Tinning/Stripping length |
1-10mm |
|
Cut precision |
±(1+0.02*L) mm, L=cut length |
|
Cutting length |
50-500mm |
|
Capacity |
3600pcs/hour (L=100mm) |
|
Crimping force |
2.0T |
|
Stroke |
30mm |
|
Air pressure |
0.5-0.7Mpa |
|
Wire color |
2-6 color wires(must be the same specification） |
|
Room Moisture |
30%-80%RH |
|
Detection |
Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error |
|
Power |
220V/110V/50/60HZ |
|
Applicators |

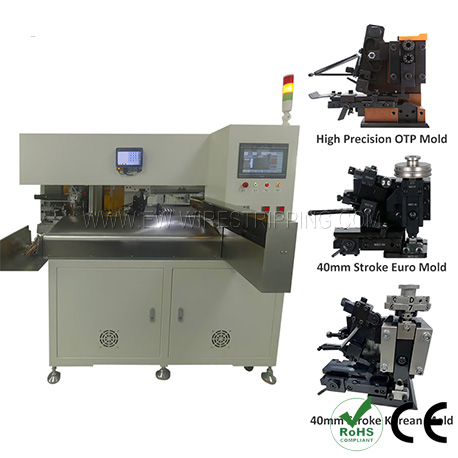

OTP applicator |
|
Dimension |
1560*1100*1600mm |
|
Weight |
700Kg |
|
Options |
CCD visual Inspection; CFM |
Feature
1. Realize the automatic wire feeding, cutting, stripping, twisting, terminal, inserting the shell, andthe integration of quality monitoring.
2. A variety of plastic shells only need to replace a few modular fixtures, simple and convenient.
3. Suitable for electronic wire, flat wire, parallel wire, halogen-free wire, silicone wire, Teflon wirebraided wire and other wire processing, suitable for 1.0 terminal, 1.25 terminal, 1.5 terminal, PH, XH, WH series terminals, etc.
4. Servo control, pneumatic components, quide rails, etc. adopt world-renowned brands to ensurethe overall performance of the equipment is stable.
5. Optional terminal machine pressure management device, CCD visual image system, worry-freeoperation, quality assurance.
6. Using touch screen interface, convenient parameter adjustment, simple andflexible operation.
7. Possess a strong boredom ability, which can intelligently upgrade and expand equipmentfunctions.

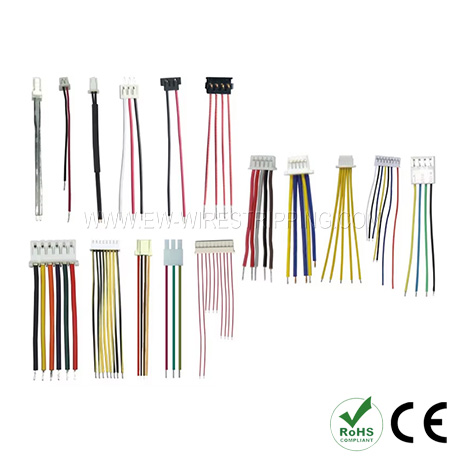

Application Range
