Fully automatic double-head terminal crimping and single side sheath inserting machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8345 |
|
Wire range |
1.0-4.0mm2(AWG1015-12#-24#) |
|
Cut length |
90mm-9999mm (800mm and above need to be equipped with a conveyor belt) |
|
Strip length |
1-15mm |
|
Crimp force |
3.0T |
|
Crimp stroke: |
30mm |
|
Applicable mold |
Universal OTP mold |
|
Detection device |
Air pressure detection, wire detection, crimping terminal detection, sheath detection |
|
Control method |
Microcontroller control |
|
Function |
Wire cutting, single (double) end stripping, single (double) end crimping, single end sheathing and pulling into place |
|
Production capacity |
2000-2500pcs/h (depending on the terminal of the wire) (this efficiency is only applicable when the machine is working continuously without stopping) |
|
Compressed air |
0.5MPa-0.8MPa (170N/min) |
|
Power supply: |
Single-phase AC220V 50/60Hz |
|
Dimensions |
Length 1700*width 900*height 1860 (mm) |
|
Main component brand |
Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Reisai servo motor, Dacheng slide rail, imported bearings from Japan. |
|
Pedal control |
N/A |

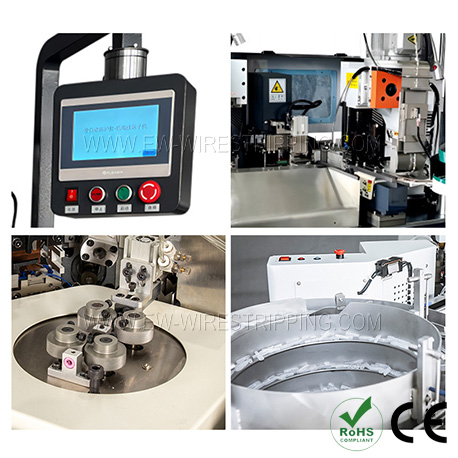

Feature
1. This machine adopts touch screen parameter setting, and the self-developed control system is equipped with high-speed servo drive + step drive combined with pneumatic, which has extremely high crimping efficiency and stable dimensional accuracy control.
2. Precision ball screw with linear guide transmission makes stripping and crimping more accurate and effective, with large torque, low noise and long life.
3. The cutter is set as a group of 6 pieces, and the tangent and other two ends are stripped at the same time to make the speed faster.
4. Wall-mounted rotary touch screen adjustment, more flexible application operation. The crimping of both ends + one end through the sheath and positioning are completed in one integration, which greatly improves the efficiency.
Application Range
More Info
Model：Fully automatic double-head terminal crimping and single side sheath inserting machine
Model:EW-8345
Wire range:1.0-4.0mm2(AWG1015-12#-24#)
Cut length:90mm-9999mm
(800mm and above need to be equipped
with a conveyor belt)
Strip length:1-15mm
Crimp force:3.0T
Crimp stroke:30mm
Applicable mold:Universal OTP mold
Wire range:1.0-4.0mm2(AWG1015-12#-24#)
Cut length:90mm-9999mm
(800mm and above need to be equipped
with a conveyor belt)
Strip length:1-15mm
Crimp force:3.0T
Crimp stroke:30mm
Applicable mold:Universal OTP mold
