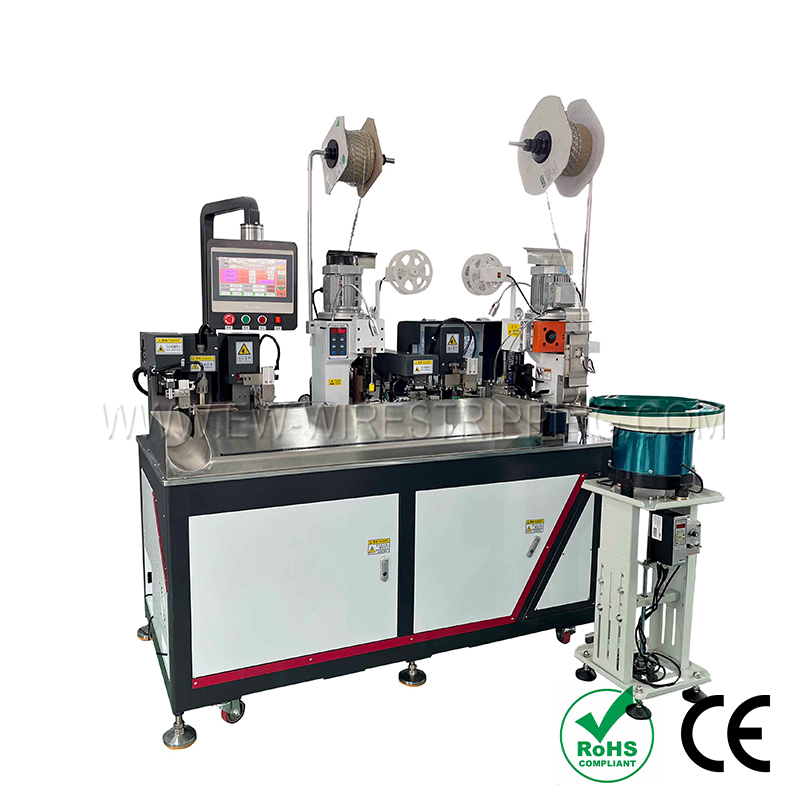

Fully automatic double-head crimping sheathed inserting and heat shrink tubing machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8350 |
|
Wire range |
0.3-4.0mm2(AWG24#-AWG12#) |
|
Cut length |
60mm-9999mm(The shortest cutting length varies according to the stripping size) |
|
Strip length |
1-15mm |
|
Crimp force |
3.0T |
|
Crimp stroke: |
30mm |
|
Applicable mold |
Universal OTP mold |
|
Detection device |
Air pressure detection, wire detection, crimping terminal detection, sheath detection |
|
Control method |
Microcontroller control |
|
Function |
Wire cutting, single (double) end stripping, single (double) end crimping, single end heat shrink tubing, single end sheathing |
|
Production capacity |
1700-2300pcs/h (depending on the terminal of the wire) (this efficiency is only applicable when the machine is working continuously without stopping) |
|
Compressed air |
0.5MPa-0.8MPa (170N/min) |
|
Power supply: |
Single-phase AC220V 50/60Hz |
|
Dimensions |
Length 1700*width 850*height1800 (mm) |
|
Main component brand |
Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Reisai servo motor, Dacheng slide rail, imported bearings from Japan. |
|
Pedal control |
N/A |
Feature

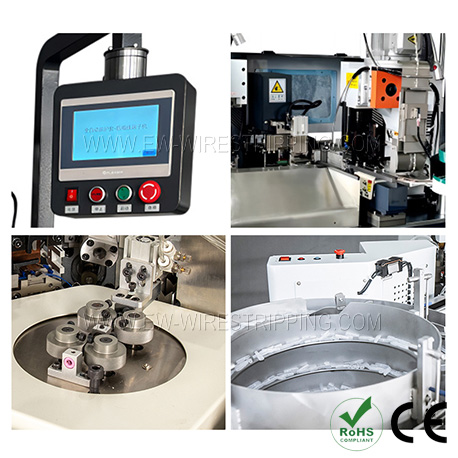

1. This machine adopts touch screen parameter setting, and the self-developed control system is equipped with high-speed servo drive + step drive combined with pneumatic, which has extremely high crimping efficiency and stable dimensional accuracy control.
2. Precision ball screw with linear guide transmission makes the stripping and crimping accuracy more accurate and effective, with large torque, low noise and long life.
3. The cutter is set as a group of 4 pieces, and the stripping operation at both ends of the tangent is faster.
4. Wall-mounted rotary touch screen adjustment, more flexible application operation.
5. One end crimping + sheathing, one end crimping + heat shrinking automatic positioning and baking are completed in one integration, which greatly improves efficiency.
Application Range
More Info
Model：Fully automatic double-head crimping sheathed inserting and heat shrink tubing machine
Model:EW-8350
Wire range:0.3-4.0mm2(AWG24#-AWG12#)
Cut length:60mm-9999mm
(The shortest cutting length varies
according to the stripping size)
Strip length:1-15mm
Crimp force:3.0T
Crimp stroke:30mm
Applicable mold:Universal OTP mold
Wire range:0.3-4.0mm2(AWG24#-AWG12#)
Cut length:60mm-9999mm
(The shortest cutting length varies
according to the stripping size)
Strip length:1-15mm
Crimp force:3.0T
Crimp stroke:30mm
Applicable mold:Universal OTP mold
