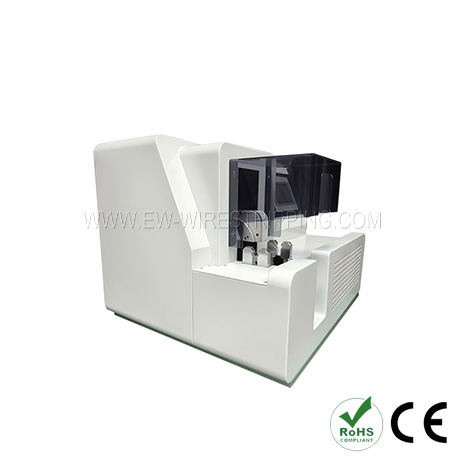

Model：Tape Wrapping Machine（8-25mm）
Scan the QR code
Model:EW-1820
Wire range:8-25mm,4-8mm can be customized
Tape width:≤25mm
Tape outer diameter:＜110mm
Wire range:8-25mm,4-8mm can be customized
Tape width:≤25mm
Tape outer diameter:＜110mm
The machine is controlled by PLC and equipped with servo motor.
1.It is suitable for 8-25mm wires,4-8mm can be customized.
2.Speed, number of turns can be adjusted, easy to operate.
3.Speed, number of turns can be adjusted, easy to operate.
4.The wire is placed manually, the equipment can clamp, winds, cut off the tape automatically to complete the operation.
Model
EW-1820
Wire range
8-25mm,4-8mm can be customized
Tape width
≤25mm
Tape outer diameter
＜110mm
Applicable to maximum copper bar
W25mm*H3mm
Power supply
AC220V/50HZ 1500W
Dimension
750*630*570mm
Weight
70KG
