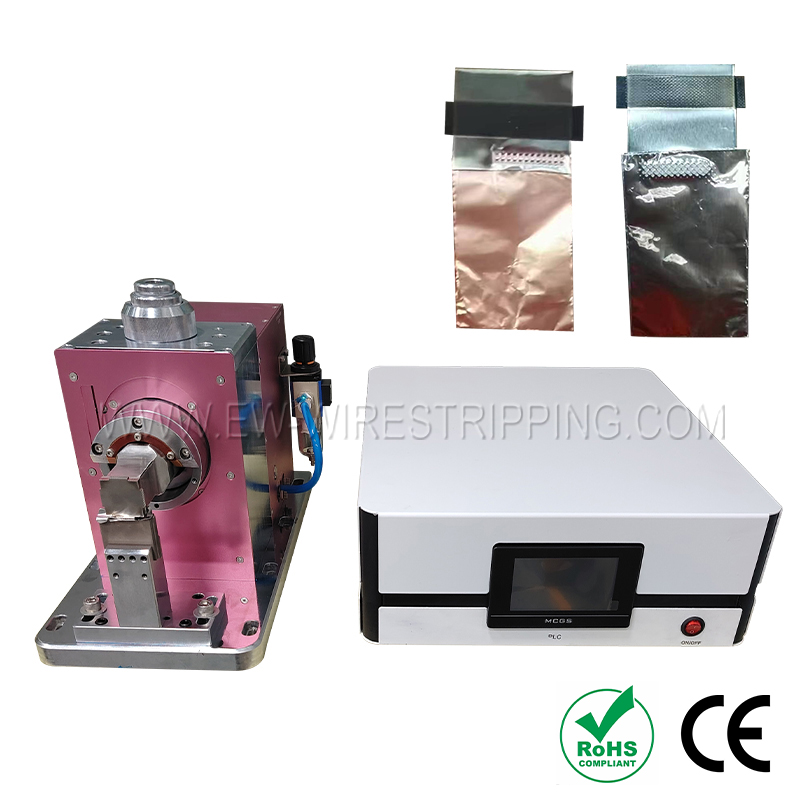

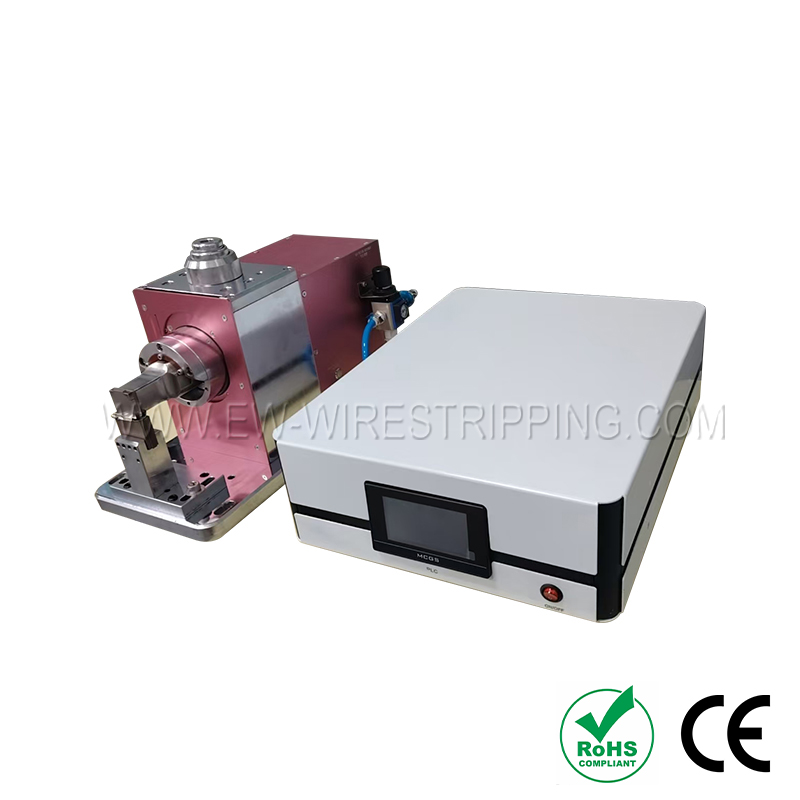

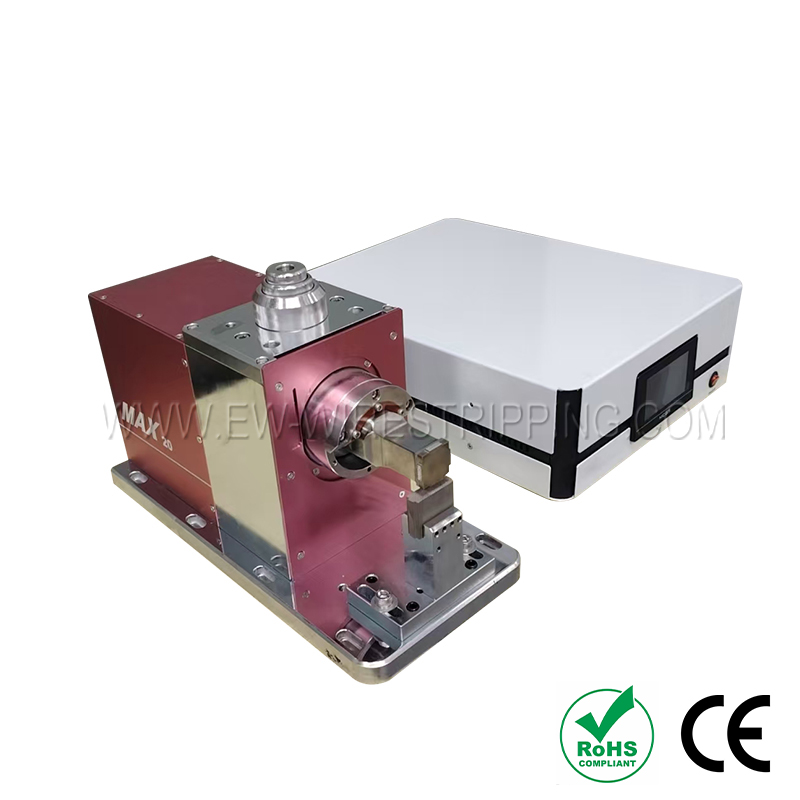

Ultrasonic wire harness welding machine (0.5-10mm2)
Cable Solder& Weld Machine
Model：Ultrasonic wire harness welding machine (0.5-10mm2)
Model:EW-6035
Language selection:Chinese/English
Control mode:MCU
Input voltage:220V
Maximum output power:4200W
Operating frequency:20HZ
Welding time range:0.5S-2S
Welding area range:0.5-10mm2
Operating humidity:0-40°
Language selection:Chinese/English
Control mode:MCU
Input voltage:220V
Maximum output power:4200W
Operating frequency:20HZ
Welding time range:0.5S-2S
Welding area range:0.5-10mm2
Operating humidity:0-40°
Technical Data
|
EW-6035 |
|
|
Language selection |
Chinese/English |
|
Control mode |
MCU |
|
Input voltage |
220V |
|
Maximum output power |
4200W |
|
Operating frequency |
20HZ |
|
Welding time range |
0.5S-2S |
|
Welding area range |
0.5-10mm2 |
|
Operating humidity |
0-40° |
|
Working air pressure |
0.2-0.8MPa |
|
Ambient temperature |
20-70 |
|
Bracket dimensions |
46x15x14cm |
|
Electrical box dimensions |
48x14x38cm |
|
Machine weight |
40KG |
|
Pedal control |
Yes |
Feature
1. Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration, Chinese/English switching.
2. Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust the frequency when changing the head)

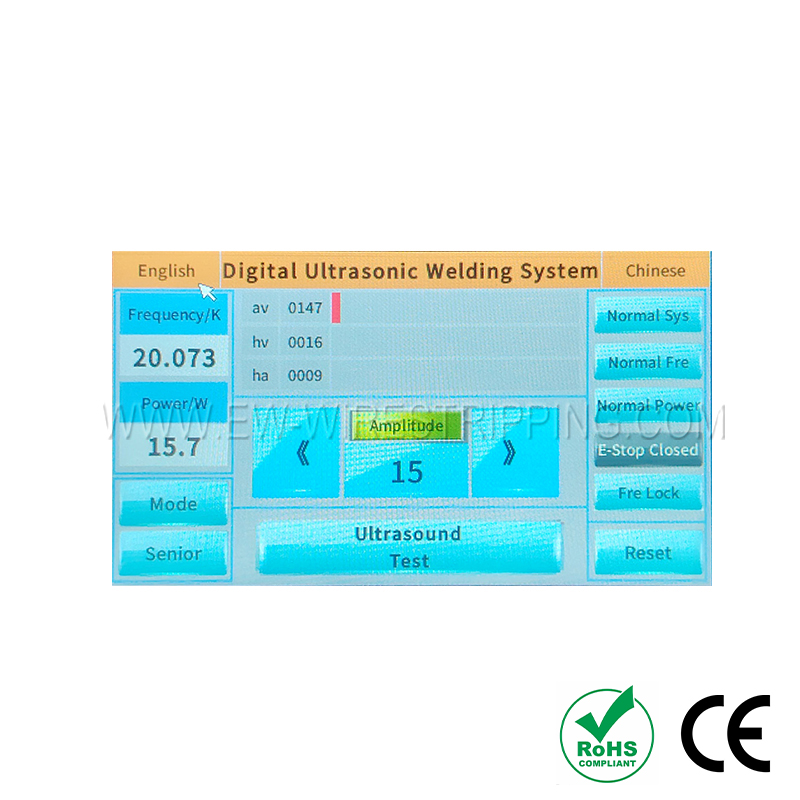

3. Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed.
4. Frequency and overcurrent protection can be manually adjusted during welding
5. Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy
6. The power box maintains stable output when the voltage fluctuates.
Advantages: short welding time, high efficiency, fast welding time, energy saving. Good conductivity after welding, high strength and zero resistance. No need to add any solder. No sparks, no smoke, safe.
Application Range
