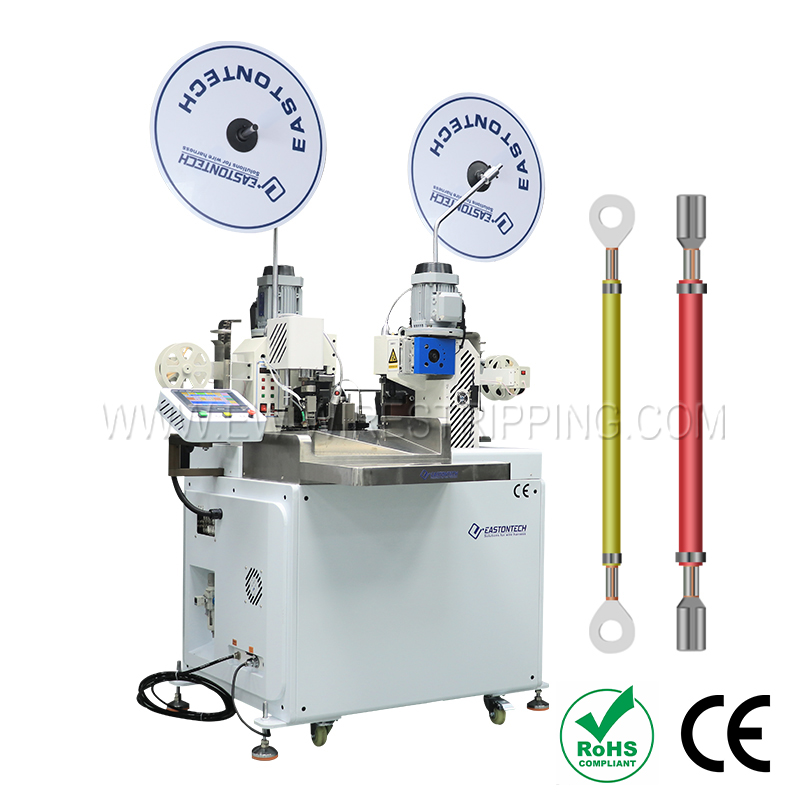

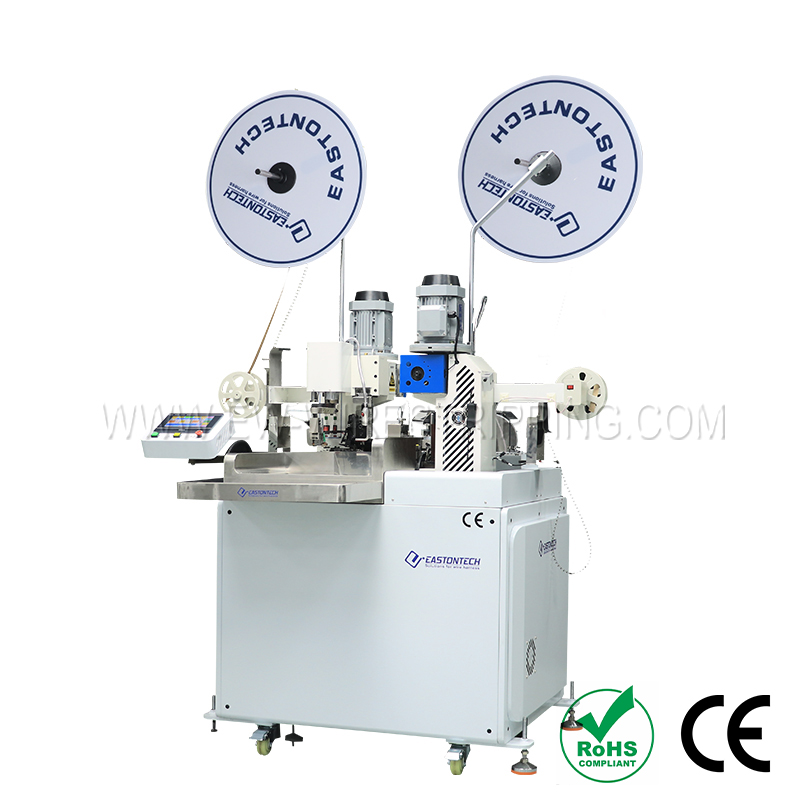

Fully automatic high speed servo double head terminal machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8360 |
|
Power supply |
AC220/50Hz |
|
Power |
2000W |
|
Air pressure |
0.4m-0.8mpa air source drying |
|
Terminal machine |
Casting type precision terminal machine |
|
Crimp capacity |
2T |
|
Display mode |
Touch screen LCD display |
|
Function |

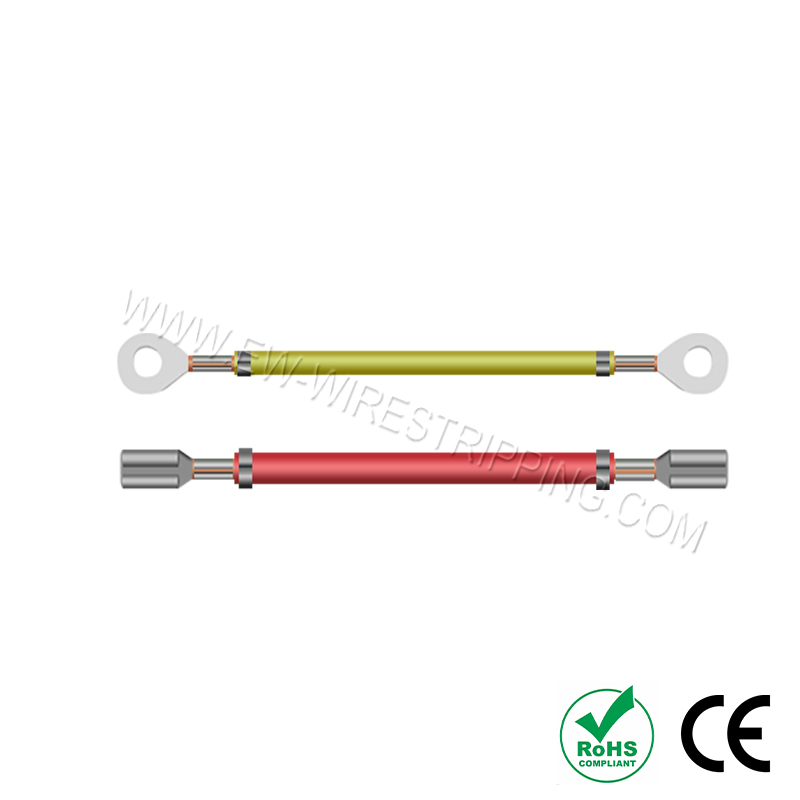

Wire fixed length cutting and stripping double-end crimping |
|
Applicable wire |
Electronic wire, high temperature wire, Teflon wire, etc. |
|
Production capacity |
4200 pieces/hour |
|
Applicable wire diameter |
30#-14# |
|
Cutting processing accuracy |
Within ±0.1 (0.1 + 0.005 * L) mm, L = cutting length |
|
Shortest glue length in the middle |
28mm glue left in the middle of the marking machine (special short wire can be modified) |
|
Stripping length |
Front and rear knives of the marking machine 9.0mm distance (variable) |
|
Applicable mold |
Universal for horizontal and vertical molds |
|

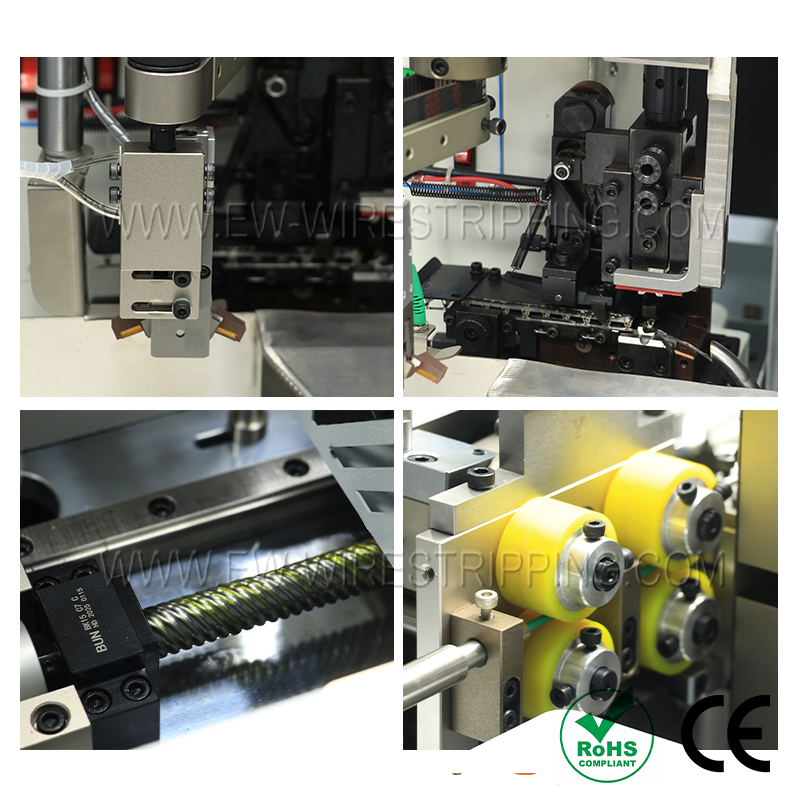

Wire feeding mode |
4-wheel wire feeding |
|
Translation mode |
Front and rear translation servo brake |
|
Wire collection mode |
Rotating swing arm wire collection |
|

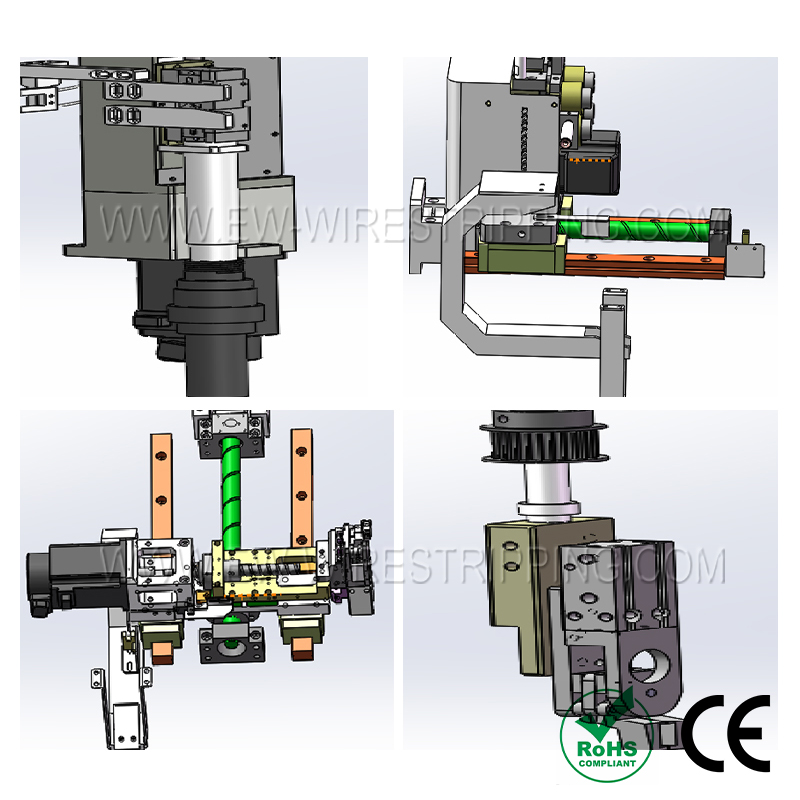

Transmission |
Screw rod, guide rail, synchronous belt |
|
Detection function |
Wire knotting, missing wire detection, paper collection detection, air pressure detection |
|
Auxiliary device |
Terminal cutting waste leakage device/waste rubber collection device, paper collection machine, air pressure buffer gas tank |
|
Others |
Terminal pressure monitor can be installed |
|
Weight |
350 kg |
|
Dimensions |
Length 1230 width 820 height 1600mm (length and width do not include protrusions) |
|
Placement space |
3.5 square |
|
Pedal Start |
N/A |
Feature
1.It adopts high-tech frequency conversion technology and electronic precise positioning. The motor working noise is lower than that of traditional terminal machines during crimping, and it saves electricity. The mold adjustment is more convenient and quick, avoiding common faults such as traditional terminal clutches and electromagnets.
2.High-speed automatic terminal machine, the mold and the machine are integrated, the whole machine performance is more stable, the machine operation is simple and easy to maintain, it is designed for high production and low maintenance, to save the cost waste caused by the failure period for manufacturers, and the appearance is beautiful and elegant, and it feels more noble and advanced.
Application Range
More Info
Model：Fully automatic high speed servo double head terminal machine
Model:EW-8360
Power supply:AC220/50Hz
Power:2000W
Air pressure:0.4m-0.8mpa air source drying
Terminal machine:Casting type precision terminal machine
Crimp capacity:2T
Display mode:Touch screen LCD display
Production capacity:4200 pieces/hour
Applicable wire diameter:30#-14#
Cutting processing accuracy:Within ±0.1 (0.1 + 0.005 * L) mm, L = cutting length
Shortest glue length in the middle:28mm glue left in the middle of the marking machine (special short wire can be modified)
