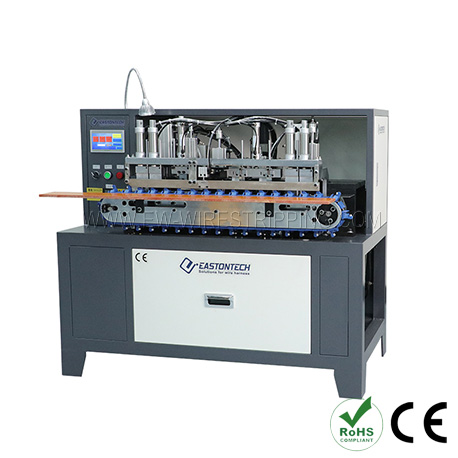

Wire stripping twisting and tinning machine(2.5-6.5mm OD)
Cable Solder& Weld Machine
Model：Wire stripping twisting and tinning machine(2.5-6.5mm OD)
Model:EW-702-2
Wire diameter:2.5-6.5mm
Max stripping length:Outer:15-45mm
Max stripping length:Inner:2-15mm
Soldering(Tinning) size:2mm-15mm
Wire diameter:2.5-6.5mm
Max stripping length:Outer:15-45mm
Max stripping length:Inner:2-15mm
Soldering(Tinning) size:2mm-15mm
Technical Data
|
Model |
EW-702-2 |
|
Wire diameter |
2.5-6.5mm(Round sheathed wire, for three core) |
|
Max stripping length ( longer length can be customized) |
Outer:15-45mm(15-95mm can bu customized) Inner:2-15mm |
|
Soldering(Tinning) size |
2mm-15mm |
|
Production capacity |
2200-2500pcs/h |
|
Dimension |
1200*700*1000mm |
|
Voltage |
AC 220V 60Hz |
|
Air source |
Clean dry compressed air |
|
Working pressure |
0.5-0.8Mpa |
|
Weight |
280kg |
|
Foot Pedal |
N/A |
Feature
1.EW-702-2 wire stripping twisting and tinning machine contains core wire separating,long-short peeling and auto-welding.
2.Parameter interface：set welding time,cool time,solder feeding time,solder feeding speed,etc.
