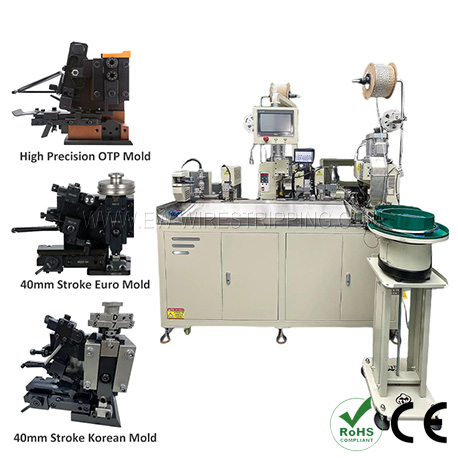

One head insert sheath another head insert heat shrink tube machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8945 |
|
Applicable wire range |
AWG24-AWG10 |
|
Stripping length |
1-15mm |
|
Cutting length |
80-9999mm |
|
Capacity |
1500-1600pcs/hour(L=80-100mm) |
|
Applicators |
30mm or 40mm strokes for optional |
|
Air pressure |
0.5-0.7Mpa |
|
Detection |
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
|
Power |
220V/110V/50/60HZ |
|
Function |
Wire cutting, single (double) end stripping, single (double) end crimping, single end heat penetration Shrink tube, single-end heat shrink, single-end sheath, single (double) tube terminal (customized) |
|
Machine Dimension |
1750*750*1850mm |
|
Weight |
750Kg |
|
Pedal |
No |

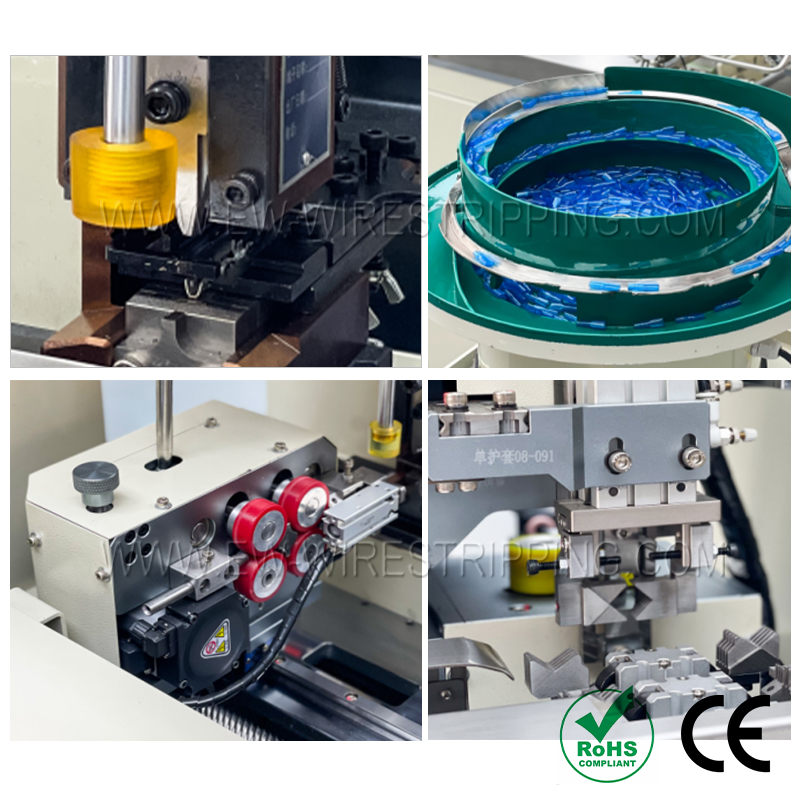

Feature
·Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.
·High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.
·Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices

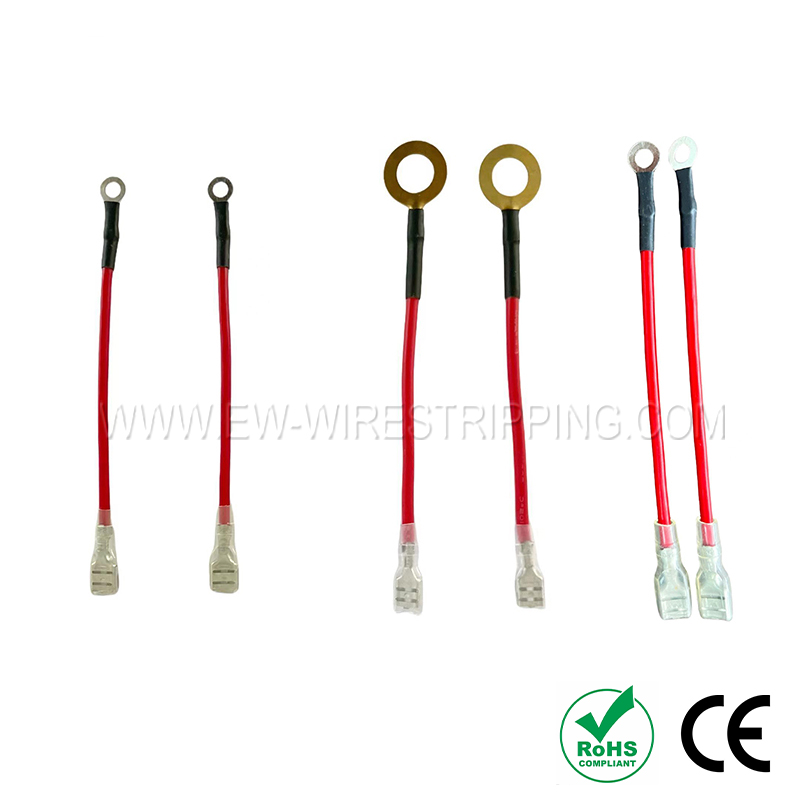

Application Range
More Info

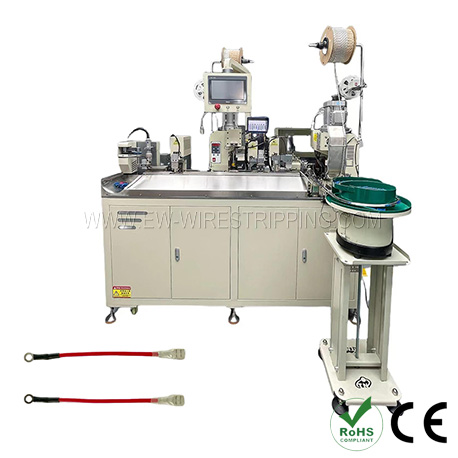

Model：One head insert sheath another head insert heat shrink tube machine
Model:EW-8945
Applicable wire range:AWG24-AWG10
Stripping length:1-15mm
Cutting length:80-9999mm
Capacity:1500-1600pcs/hour(L=80-100mm)
Applicators:30mm or 40mm strokes for optional
Air pressure:0.5-0.7Mpa
Applicable wire range:AWG24-AWG10
Stripping length:1-15mm
Cutting length:80-9999mm
Capacity:1500-1600pcs/hour(L=80-100mm)
Applicators:30mm or 40mm strokes for optional
Air pressure:0.5-0.7Mpa
