Automatic Double heads wire crimping twisting machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8960 |
|
Applicable wire range |
AWG30-AWG16 |
|
Stripping length |
Front 8.5 , end 11.5 |
|
Cut precision |
±0.1（0.1＋0.005*L）mm，L=cutting length |
|
Cutting length |
50-1100mm |
|
Capacity |
1300pcs/hour (not twist , L=100mm) 800-950pcs/hour (twist , L=100mm) |
|
Crimping force |
2.0T |
|
Stroke |
30mm/40mm |
|
Air pressure |
0.5-0.7Mpa |
|
Detection |
Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error |
|
Power |
220V/110V/50/60HZ |
|
Dimension |
2100*1250*1520mm |
|
Weight |
550KGS |
Feature
·The rear end wire drawing fixed length mode ensures accurate wire cutting and stripping, and neatly stored wires
·The tool holder is a grinding screw double guide servo, and the rubber is scraped by suction and the rubber is clean
·The tool holder, front and rear end translation, air clamp, etc. are all hard precision grinding parts with long service life

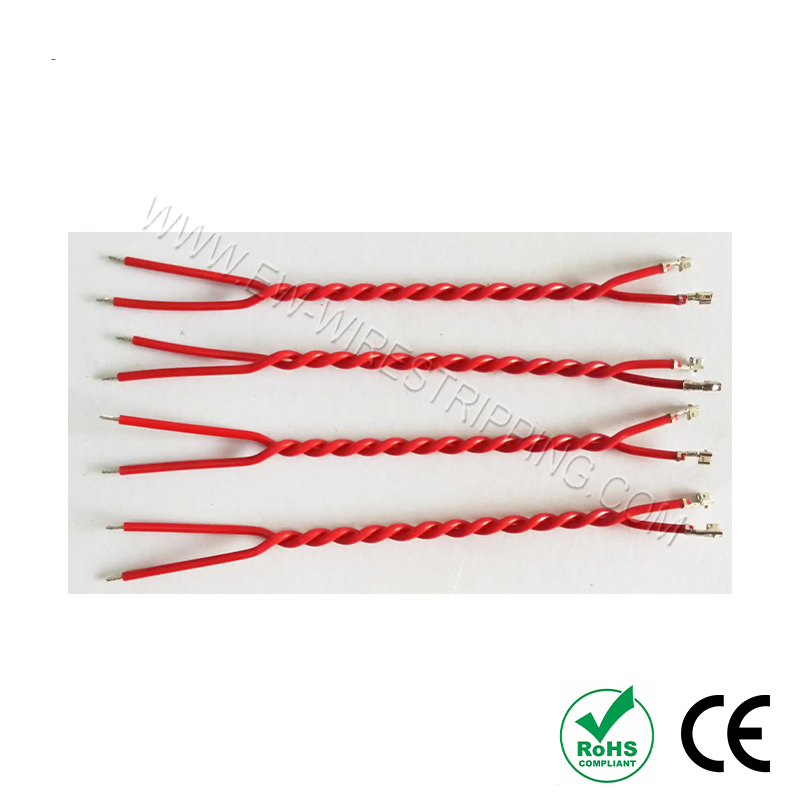

Application Range
More Info
Model：Automatic Double heads wire crimping twisting machine
Model:EW-8960
Applicable wire range:AWG30-AWG16
Stripping length:Front 8.5 , end 11.5
Cut precision:±0.1（0.1＋0.005*L）mm，L=cutting length
Cutting length:50-1100mm
Capacity:1300pcs/hour (not twist , L=100mm)
800-950pcs/hour (twist , L=100mm)
Applicable wire range:AWG30-AWG16
Stripping length:Front 8.5 , end 11.5
Cut precision:±0.1（0.1＋0.005*L）mm，L=cutting length
Cutting length:50-1100mm
Capacity:1300pcs/hour (not twist , L=100mm)
800-950pcs/hour (twist , L=100mm)
