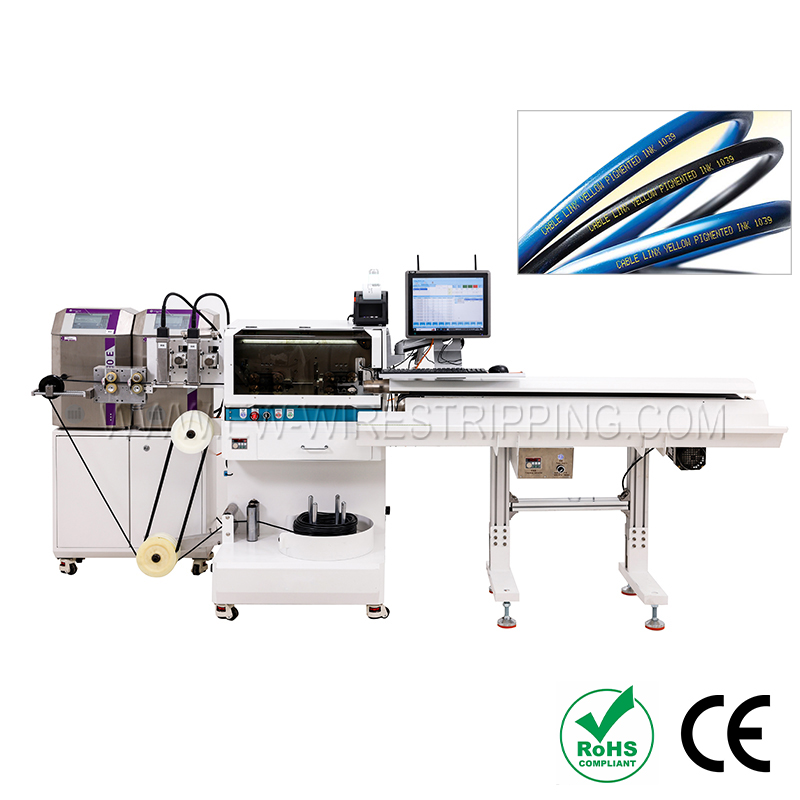

Automatic wire cutting stripping machine with printing
Pro-cut&Strip
194
Model：Automatic wire cutting stripping machine with printing
Model:EW-3215
Conductor cross-section:0.75 - 30 mm²
Maximum guide tube diameter:18 mm
Core wire stripping:2-10 cores
Compressed air connection:0.5 - 0.7 MPa
Conductor cross-section:0.75 - 30 mm²
Maximum guide tube diameter:18 mm
Core wire stripping:2-10 cores
Compressed air connection:0.5 - 0.7 MPa
Technical Data
|
Model |
EW-3215 |
|
Conductor cross-section |
0.75 - 30 mm² |
|
Cable |

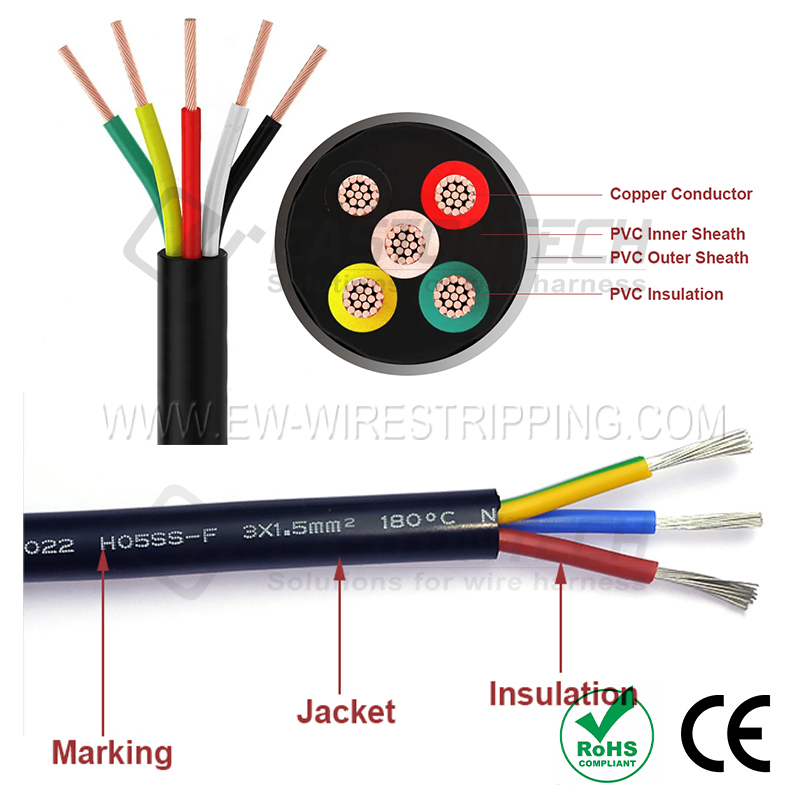

Single core cable,Multi-conductor cable,Sheathed cable,PVC cable etc. |
|
Core wire stripping |
2-10 cores |
|
Cutting length |
1 - 999,999.9 mm |
|
Cutting length tolerance |
< 0.002 * L (L = cutting length) |
|
Stripping length (side I) |
Cable jacket - Full strip: 10 - 200 mm - Half strip: 1 - 800 mm Core wire - Full strip: 1 - 50 mm - Half strip: 5 - 200 mm |
|
Stripping length (side II) |
Cable jacket - Full strip: 10 - 80 mm - Half strip: 1 - 300 mm Core wire - Full strip: 1 - 50 mm - Half strip: 5 - 80 mm |
|
Maximum guide tube diameter |
18 mm |
|
Productivity |
2000 pcs./h 900 pcs./h (multi-conductor cable) |
|
Blade material |
Imported high speed steel |
|

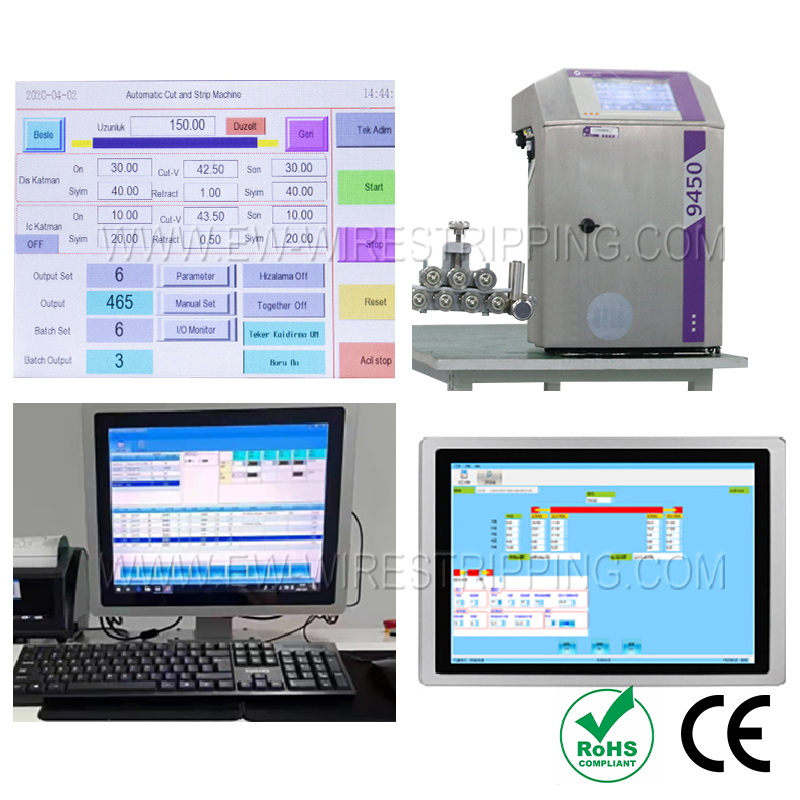

Display mode |
7-inch touch screen |
|
Driving mode |
Servo motor cutting with 16 roller driving system |
|
Feeding mode |
Belts feeding with pressure stripping function. |
|
Roller Gap |
Digital program control |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
1.1 kW |
|
Compressed air connection |
0.5 - 0.7 MPa |
|
Weight |
95 kg |
|
Dimension |
680 * 605 * 520 mm |
|
Printing color |
White/black,other colors is optional |
|
Remarks |
Custom options by sending samples |
Feature
● Efficient Wire Stripping and Cutting: Automatic Wire Stripping Machine efficiently strips and cuts wires with a cutting length range of 0.5-99999.99mm, making it suitable for various wire types, including multicore sheathing wire, flat modular phone cable, PVC wire, and Teflon wire.
● Versatile Wire Material Compatibility: The machine can handle a wide range of wire materials, including multi core sheathing wire, flat modular phone cable, PVC wire, and Teflon wire, meeting the needs of various industries and users.
● High-Quality Cutting and Stripping Performance: The eight-wheel drive mechanism ensures precise cutting and stripping, resulting in high-quality wire ends, which is particularly important for applications where wire harness equipment is used.
● The machine is equipped with two inkjet printers, offering a selection of ink colors for coding. Additionally, an automatic wire feeding device is integrated to ensure the precision of wire cutting.
Application Range
