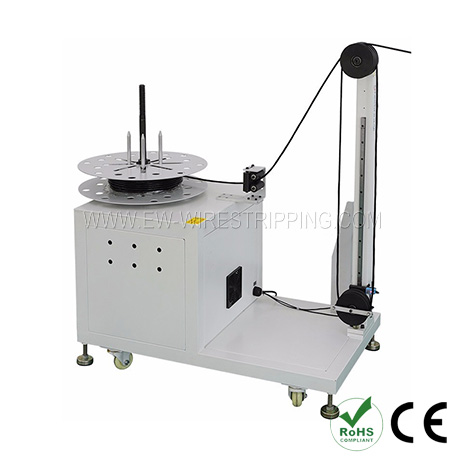

Automatic Horizontal Cable Spool Dereeler(Max 50kgs)
Prefeeding& Deposit System
Technical Data
|
Model |
EW-14J |
|
Wire Size |
< 6.0mm |
|
Cable Drum OD |
Max. 700mm |
|
Cable Drum ID |
Standard:120-300mm Customize :120-400mm; 120-500mm; 120-600mm |
|
Cable Drum Width |
<200mm |
|
Max. Loading Weight |
50kgs |
|
Power Supply |
AC110/220V/50/60HZ |
|
Packing Weight |
115kgs |
|
Packing Measurement |
1020*520*1050mm |
Feature
·A highly dynamic prefeeding machine, which has been developed to feed cable and wiregently to automatic crimping machines or other wire harness processing machinery.
· It features a high application range and does not require any electrical connection to its host machine.
·It distinguishes itself by carrying frequency control system which enables feeding speed automatically
adjusts to thefeeding demand.
·Its designed to provide constant strain, low tension payout of wire and cable, large wire accumulation
capacity providessufficient wire feeding.
Application Range
More Info
Model：Automatic Horizontal Cable Spool Dereeler(Max 50kgs)
Model:EW-14J
Power Rating ：750W
Wire Feeding Speed：Max 80HZ
Wire Feeding Length：360 rotate /min
Loading Weight：Max 50KG
N.W：100kgs
Power Rating ：750W
Wire Feeding Speed：Max 80HZ
Wire Feeding Length：360 rotate /min
Loading Weight：Max 50KG
N.W：100kgs
