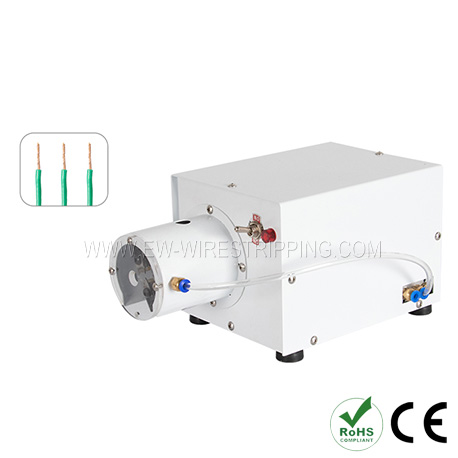

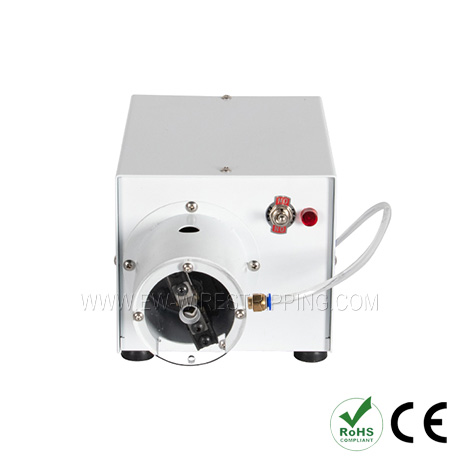

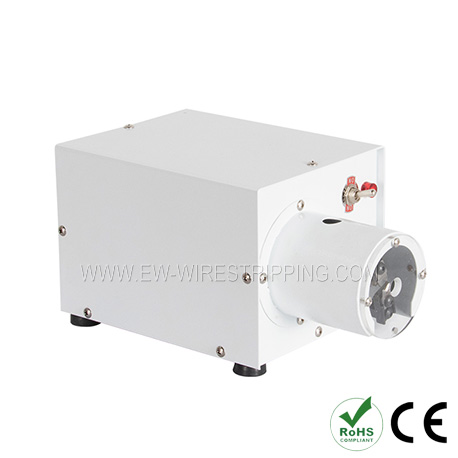

Cable Stripping and Twisting Machine AWG26-AWG10
Strip,Twist
Technical Data
| Model | EW-10ST-2 |
| Wire range | AWG26-AWG10 |
| Twisting length | 3-45mm |
| Stripping length | 3-45mm |
| Speed | 0.5-2s each time |
| Weight | 10kgs |
| Power | Electric |
| Dimension | 320*185*170mm |
Feature
1. The machine needs electricity and gas as power
2. The use of electric foot switch control reduces the labor intensity of workers, is light and easy to operate, and greatly improves work efficiency
3. All wires are stripped with one knife, no need to change the knife in the middle
4. Insert the wire into the cutter and pull it out to be stripped and twisted
5. Peeling twisted wire 26#-10# awg wire diameter can be easily completed, the twisting effect is tight, and the length requirement is lower than 3MM
Application Range
More Info
Model：Cable Stripping and Twisting Machine AWG26-AWG10
Model:EW-10ST-2
Available Wire Size:AWG10-AWG26
Stripping lengths:3-45mm
Twisting length:3-45mm
Available Wire Size:AWG10-AWG26
Stripping lengths:3-45mm
Twisting length:3-45mm
