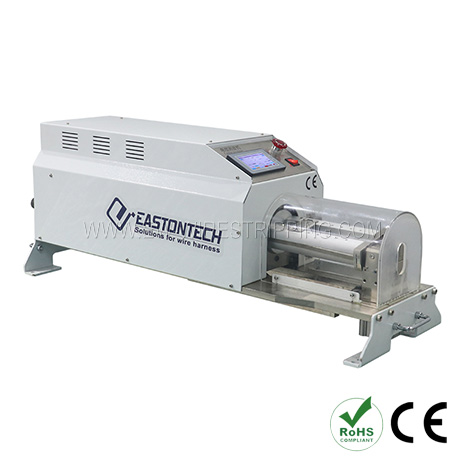

EW-10UT-1 Automatic Wire Stripping Machine(OD:10-25mm)
Strip,Twist
Technical Data
| Model | EW-10UT-1 | EW-10UT-2 | EW-10UT-3 |
| Wirediameter | 10-25 mm | 10-25 mm | 10-50mm |
| Stripping lengths | 0-100mm | 0-200mm | 0-300mm |
| Stripping mode | Rotary stripping | Rotary stripping | Rotary stripping |
| Air input | 0.5-0.7mpa | 0.5-0.7mpa | 0.5-0.7mpa |
| Length accuracy | ±(0.002*L)mm | ±(0.002*L)mm | ±(0.002*L)mm |
| Productivity | 20-40pcs/min | 20-40pcs/min | 20-40pcs/min |
| Noise level | <70dba | <70dba | <70dba |
| Electrical connection | AC220/110V/50/60HZ | AC220/110V/50/60HZ | AC 220/110V/50/60HZ |
| Operation interface | BLC+Touch screen | BLC+Touch screen | BLC+Touch screen |
| Machinedimension: | 1000*330*430mm | 1000*450*350mm | 1400*450*350mm |
| Weight: | 80kgs | 80kgs | 100kg |
Feature
1.Easy to operate program and low maintenance.
2.High precision and productivity solutions for wire cable cutting and stripping.
3.Safety protection.Optional external device connection possibility: Wire feeding machine, and wire take-out device.
Application Range
More Info
Model：EW-10UT-1 Automatic Wire Stripping Machine(OD:10-25mm)
Model：EW-10UT-1
Wire dia.：10-25 mm
Stripping lengths：0-100mm
Stripping mode：Rotary stripping
Air input ：0.5-0.7mpa
Length accuracy：±(0.002*L)mm
Productivity：10-30pcs/min
Wire dia.：10-25 mm
Stripping lengths：0-100mm
Stripping mode：Rotary stripping
Air input ：0.5-0.7mpa
Length accuracy：±(0.002*L)mm
Productivity：10-30pcs/min
