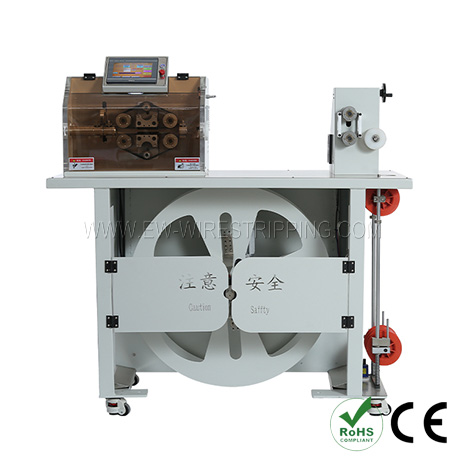

Automatic Corrugated Tube Cutting Machine (5 - 30 mm) (slitting is optional)
Cut
Technical Data
| Model | EW-12A | EW-12A-1 (cut and slit) |
| Material outer diameter | 5 - 30 mm (can be customized) | 5 - 30 mm (can be customized) |
| Cutting length | 1 - 99999.9 mm | 1 - 99999.9 mm |
| Cutting increment | 0.1 mm | 0.1 mm |
| Cutting tolerance | 0.005 * L (L = cutting length) | 0.005 * L (L = cutting length) |
| Cutting mode | By motor | By motor |
| Cutting stroke | 30 mm | 30 mm |
| Productivity | 10 - 60 pcs./min | 10 - 60 pcs./min |
| Control system | PLC | PLC |
| Power supply | 110, 220 V (50 - 60 Hz) | 110, 220 V (50 - 60 Hz) |
| Power | 300 W | 300 W |
| Dimension | 580 * 470 * 500 mm | 580 * 470 * 500 mm |
| Weight | 70 kg | 70 kg |
Feature
● The machine is specifically designed for cutting various corrugated tubes.
● Memory capacity of 100 materials.
● High productivity, which can be up to 10 - 60 pcs./min.
● The machine will stop cutting if the material is used out, owing to the material detection device.
● Intelligent sensor --- the machine will not start to cut until the safety door is closed.
● Slit function is optional.
● Special application can be customized.
Application Range
More Info
Model：Automatic Corrugated Tube Cutting Machine (5 - 30 mm) (slitting is optional)
Model: EW-12A
Material outer diameter: 5 - 30 mm
Cutting length: 1 - 99999.9 mm
Cutting increment: 0.1 mm
Cutting length tolerance: 0.005 * L
Material outer diameter: 5 - 30 mm
Cutting length: 1 - 99999.9 mm
Cutting increment: 0.1 mm
Cutting length tolerance: 0.005 * L
