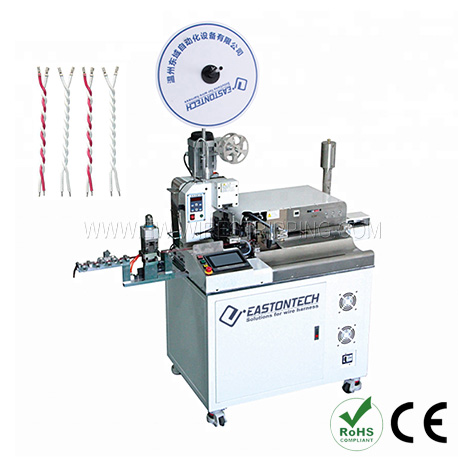

Model：Fully Automatic Wire Crimping Twisting and Tinning machine

Scan the QR code

Share to:
    •
  • 刷新
Model  :EW-22G+T
Wire  range:AWG18-AWG34
Cutting  length:50mm-400mm
Stripping  length:0.1mm-6mm(7-20mm  can  be  customized.)
Twisting  length:2-7mm(7-20mm  can  be  customized.)
ENQUIRE NOW!
Video Specifications

  • 1. Programmable length.

    2. KINCO 7inch operating touch screen.

    3. SMC cylinder

    4. Omron Temperature Controller

    5. Servo: MITSUBISHI

    6. Taiwan Hi-win linear guider & ball screw

    7. SMC air detector.


  • Model

    EW-22G+T

    Applicable wire range

    AWG34-AWG18

    Stripping

    0.1-6mm (7-20mm can be customized)

    Cut precision

    ±(0.5+0.002*L) mm, L=cut length

    Cutting length

    50-400mm

    Capacity

    1200pcs/hour

    Crimping force

    2.0T

    Twisting length

    2-7mm (7-20mm can be customized)

    Air pressure

    0.5-0.7Mpa

    Detection

    Wire run out, low air pressure, terminate error(Crimping force monitor is optional)

    Power

    220V/110V/50/60HZ

    Applicators

    30mm or 40mm strokes for optional

    Dimension

    1210*770*1370mm

    Weight

    480Kg

    Power cord plug

    European, USA, Chinese plug
