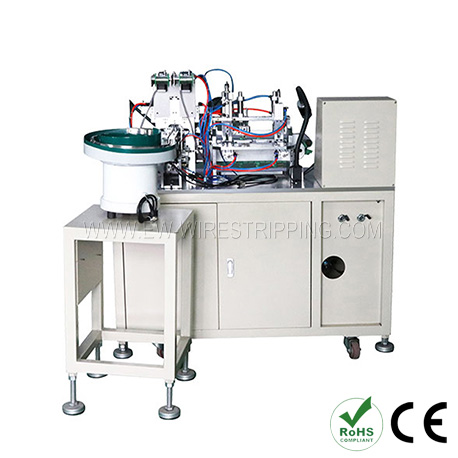

DC terminals soldering cable welding Machine
Plug Production
Technical Data
|
Model |
EW-714 |
|
Soldering model |
Mainly is pressure welding : optional pulse welding, spot welding |
|
Adaptation connectors |
DC series, RCA series,Stereo plug series |
|
Applicable |
2468, round wire; wire OD 0.3-1.2mm, PVC, PE, TPU, copper / copper clad steel / copper clad aluminum; with cotton thread with nylon wire |
|
After welding wire length |
2.5-8mm |
|
Using tin |
OD 0.6-1.2mm,average savings of 15% |
|
Internal peeling length |
250-600 degrees adjustable |
|
Machine operation |
Commissioning, single-action operation, linked operation |
|
Machine productivity |
1200-1300pcs/hour |
|
Consumable parts |
Tip, stripping knife, cutter, soldering iron handle |
|
Power source |
AC220V 50/60HZ |
|
Air pressure |
5-6kgf/cm2 |
|
Machine size |
1180*750*1120mm |
|
Weight |
220KG |
Feature
· Mainly used for automatic welding of DC series and RCA series
· It is composed of automatic feeding of vibrating plate, wire clamping, wire splitting, wire stripping, welding and other stations
· Compact structure, high speed and high precision
· Stable quality of welded products
Application Range
More Info
Model：DC terminals soldering cable welding Machine
Place of Origin: Zhejiang, China (Mainland)
Brand Name: EASTONTECH
Model Number: EW-714
Usage: Stripping
Certificate: ISO,CE
Warranty: One year
Weight: 220KG
After welding wire length: 2.5-8mm
Power source: AC220V 50/60HZ
Air pressure: 5-6kgf/cm2
