2. Cutting length: 1 - 99999.99 mm
3. Cutting length tolerance: ± 0.002 * L

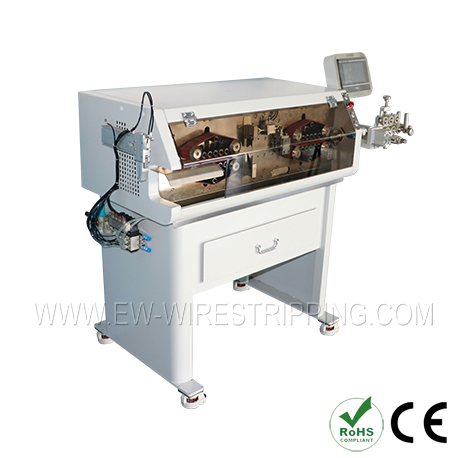

The EW-05H-2 is designed for processing wide range of industrial wires & cables up to 120 mm2 (EW-05H-3 up to 150 mm2).
● Full-strip; half-strip.
● User-friendly production setup.
● Memory capacity of 100 materials.
● Equipped material detection sensor and protective cover safety sensor.
● Optional all servomotor version with 20 % increased productivity.
● Customized possibility for special applications.
Model
EW-05H-2
EW-05H-3
Conductor cross-section
10 - 120 mm²
10 - 150 mm²
Cutting length
1 - 99999.9 mm
1 - 99999.9 mm
Cutting length tolerance
< 0.002 * L (L = cutting length)
< 0.002 * L (L = cutting length)
Stripping length (side I)
Full strip: 1 - 300 mm
Half strip: 1 - 1000 mm
Full strip: 1 - 300 mm
Half strip: 1 - 1000 mm
Stripping length (side II)
Full strip: 1 - 200 mm
Half strip: 1 - 500 mm
Full strip: 1 - 200 mm
Half strip: 1 - 500 mm
Maximum guide tube diameter
24 mm
27 mm
Productivity
800 pcs./h
800 pcs./h
Blade material
Imported high speed steel
Imported high speed steel
Display mode
7-inch touch screen
7-inch touch screen
Driving mode
24-wheel driving, servo tool holder
24-wheel driving, servo tool holder
Feeding mode
By belts
By belts
Power supply
110, 220 V (50 - 60 Hz)
110, 220 V (50 - 60 Hz)
Power
2.3 kW
6.8 kW
Compressed air connection
0.5 - 0.7 MPa
0.5 - 0.7 MPa
Weight
270 kg
280 kg
Dimension
1100 * 680 * 1260 mm
1200 * 680 * 1260 mm
Remarks
Custom options in accordance with samples
