Fully Automatic Wire Cutting Stripping Crimping and Sealing Machine
Cut Strip Terminate& Solder
Technical Data
| Model | EW-22T-1 |
| Applicable wire range | AWG28-AWG16 |
| Cut length | 50-9999mm (set 1mm unit) |
| Cut precision | ±1 (1+0.002*L) mm, L=cut length |
| Stripping length | 1.5-10mm |
| Crimp capacity | 2.0T/3.0T |
| Power | 220V/110V/50/60HZ |
| Productivity | 3000pcs/hour |
| Compressed air | 4-6kgf |
| External dimensions | 700mm*800mm*1500mm (length, width and height) |
| Weight | 348KG |
| Function | Both ends cutting stripping, single end sealing |
| Detection unit | Wire detection,Terminal pressure detection; Wire blocking detection; Low air pressure |
| CFM | Optional |
Feature

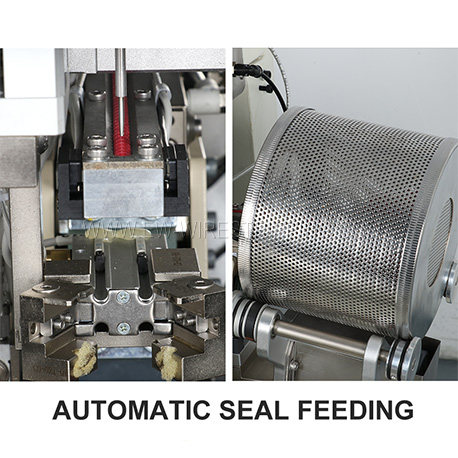

This is a fully automatic wire stripping crimping and sealing machine, one end sealing and crimping,
another end only crimping terminal.You can also close the sealing function in program if you only want to crimp terminal.
You can store your settings in different program files through touch screen.
Application Range
More Info
Model：Fully Automatic Wire Cutting Stripping Crimping and Sealing Machine
Model:EW-22T-1
Peeling Length：1.5mm—10mm
Certificate:ISO,CE
Warranty:One year
Pressure Capacity：2.0T/3.0T
Peeling Length：1.5mm—10mm
Certificate:ISO,CE
Warranty:One year
Pressure Capacity：2.0T/3.0T
