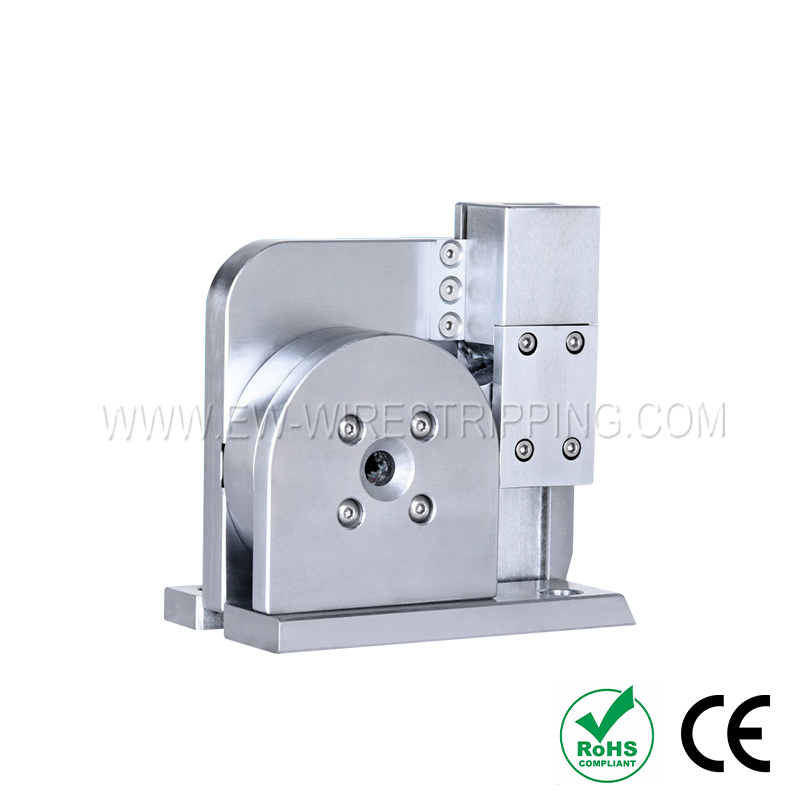

M4D 4 point crimping applicator
Moulds&Accessory
4683
Model：M4D 4 point crimping applicator
Model:EW-09H005
Crimping range:0-6mm(0D)
N.W.:5.4KGS
Stroke :0-30mm
Knife mold fillet:0-R1.5mm, can be customized
Crimping range:0-6mm(0D)
N.W.:5.4KGS
Stroke :0-30mm
Knife mold fillet:0-R1.5mm, can be customized
Technical Data
| Model | EW-09H005 |
| Crimping accuracy | ±0.03mm |
| Number of crimping | ≧300,000 times |
| Crimp shape | dotted |
| Crimping range | 1-35mm2 |
| Stroke | 0-30mm |
| Knife mold fillet | 0-R1.5mm, can be customized |
| Dimensions | 146*80*147mm |
| N.W. | 5.4KGS |
Feature
● Applicable equipment:
Mute terminal machine.
Hydraulic terminal machine.
Pneumatic crimping machine
Electric punching machine.
