Splice Force: 2.0T Ton (can adjust )
Wire Diameter: AWG24#-AWG10#
Feeding Length : 1mm-99.9mm
Cooper Width:1.0-6.0mm
Splice precision:0.1-0.2(±0.05m)
1.With pressure detecting device that automatically detects the quality of the crimped product and can export the crimped data for analysis.

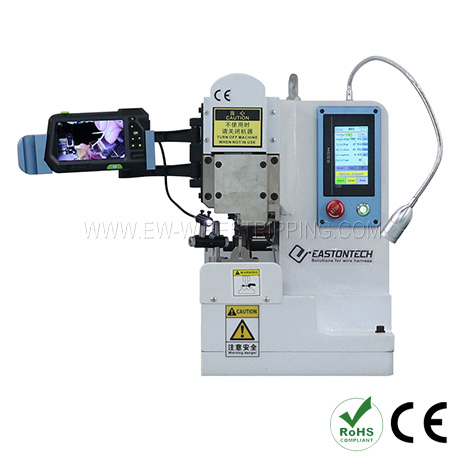

2.The mould monitor is used to control the quality of the crimping, which allows the operator to visually observe the position of the product.
3.With automatic conveying of copper strip, the material is automatically cut, formed, pressed, and no waste is generated, saving costs.
Model
EW-1550
Splice force
2.0T (can adjust )
Splice time
0.01S (can adjust keep crimp time )
Stop splice machine
Can adjust
Motor rating
0.75KW Sevo motor
Power supply
AC220 110V /50 60HZ
Wire diameter
AWG24#-AWG10#
Feeding length parameters
1mm-99.9mm
Cooper width
1.0-6.0mm
splice precision
0.1-0.2(±0.05m)
Dimensions
340*360*450mm
Crimp Pull Power
within 16KG
Weight
60KG
