Splice Force:2.0 Ton (can adjust )
Wire Diameter:AWG18#-AWG12#
Feeding Length :1mm-99.9mm
Cooper Width:1.0-6.0mm
Stripping Length:2mm-10mm
1.Mainly for power cord 、USB、Sheath wire、Charger wire、 Vehicle aviation wire 、processing etc.
2.Sevo System Control Optimize crimp mode and structure.
3.crimping points to ensure contact with its own process of crimping does not distort at the same time play a role in positioning.
4.Crimp height, material area of the metal or conductor contact area, so as to meet the presicion wire crimp height standards.
5.Crimp width, to avoid causing copper and wire contact area is too small or large to strictly control.

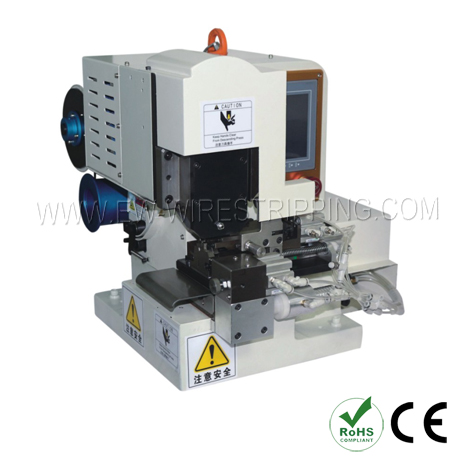

Model
EW-1565
Splice force
2.0 Ton (can adjust )
Splice time
0.01S (can adjust keep crimp time )
Stop splice machine
Can adjust
Motor rating
750W Sevo motor
Power supply
AC220/50HZ
Wire diameter
AWG18#-AWG12#
Feeding length parameters
1mm-99.9mm
Cooper width
1.0-6.0mm
splice precision
0.1-0.3(±0.05m)
Stripping length
2mm-10mm
Driving way
Servo motor,stepping feeding,
Dimensions
340*360*650mm
Weight
65kgs
