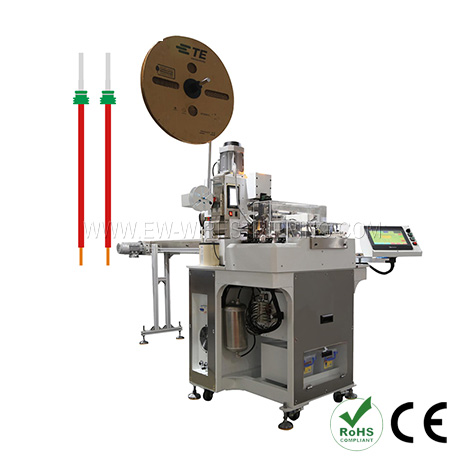

Automatic Single Head Waterproof Plug Crimping Terminal Machine
Cut Strip Terminate& Solder
Technical Data
| Model | EW-5025 |
| Applicable wire range | 0.2-2.5mm2 |
| Stripping length | 0.1-15mm |
| Cut precision | ±0.02 mm |
| Cutting length | 35-9999mm(set 1mm as the unit) |
| Crimp capacity | 2.5T |
| Crimping brake method | Servo motor |
| Wire type | AV.AVS.AVSS.CAVUS,KVKIV,UL |
| Power | 220V/110V/50/60HZ |
| Display language | Chinese/English |
| Waterproof plug | Waterproof single end insertion |
| External dimensions | 1200mm*1100mm*2300mm (length, width and height) |
| Weight | 525KG |
| CFM | Optional |
| Power cord plug | European, USA, Chinese plug |
Feature
Precision automatic single - head waterproof plug crimping terminal machine, which is driven by Mitsubishi servo motor and ball screw, and uses Mitsubishi control system to make the position of wire feeding. peeling,crimping, single through waterproof plug very precise. Mutual movement connection is smooth, the mechanical control is simple and convenient, all are operated by the touch screen, the data adjustment can change the length of the stripping and cutting line, the tangential depth, the position of crimping etc. saving time for the adjustment personnel, and the automatic detection function of the machine can also ffctively control the defective products. The EW-5025 is a safe, efficient and sophisticated processing machine. (Customized according to requirements).
Application Range
More Info
Model：Automatic Single Head Waterproof Plug Crimping Terminal Machine
Model:EW-5025
Applicable wire range:0.2-2.5mm2
Stripping length:0.1-15mm
Cut precision:±0.02 mm
Cutting length:35-9999mm(set 1mm as the unit)
Crimp capacity:2.5T
Crimping brake method:Servo motor
Applicable wire range:0.2-2.5mm2
Stripping length:0.1-15mm
Cut precision:±0.02 mm
Cutting length:35-9999mm(set 1mm as the unit)
Crimp capacity:2.5T
Crimping brake method:Servo motor
