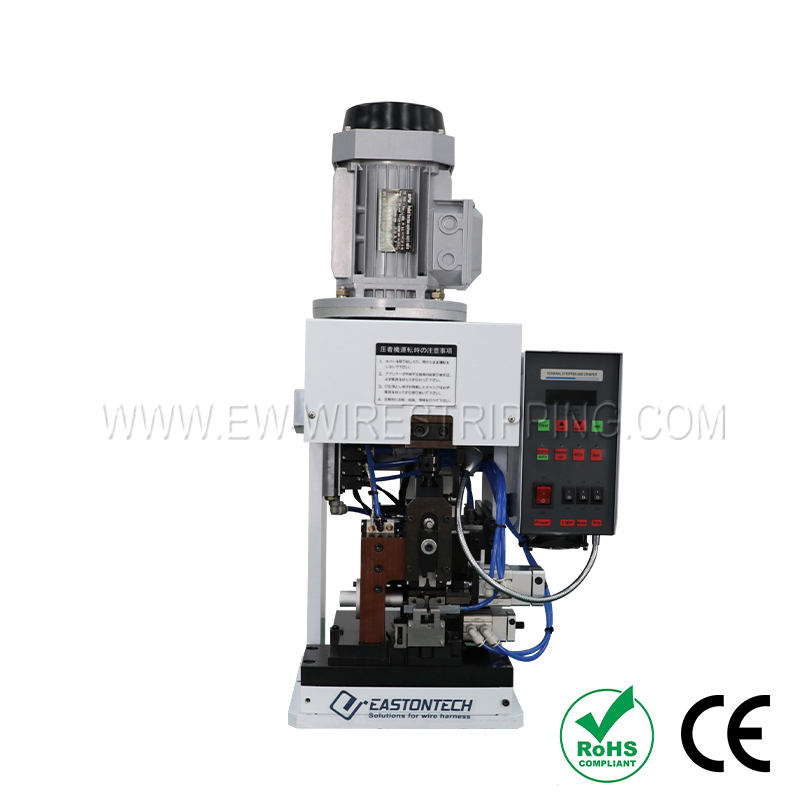

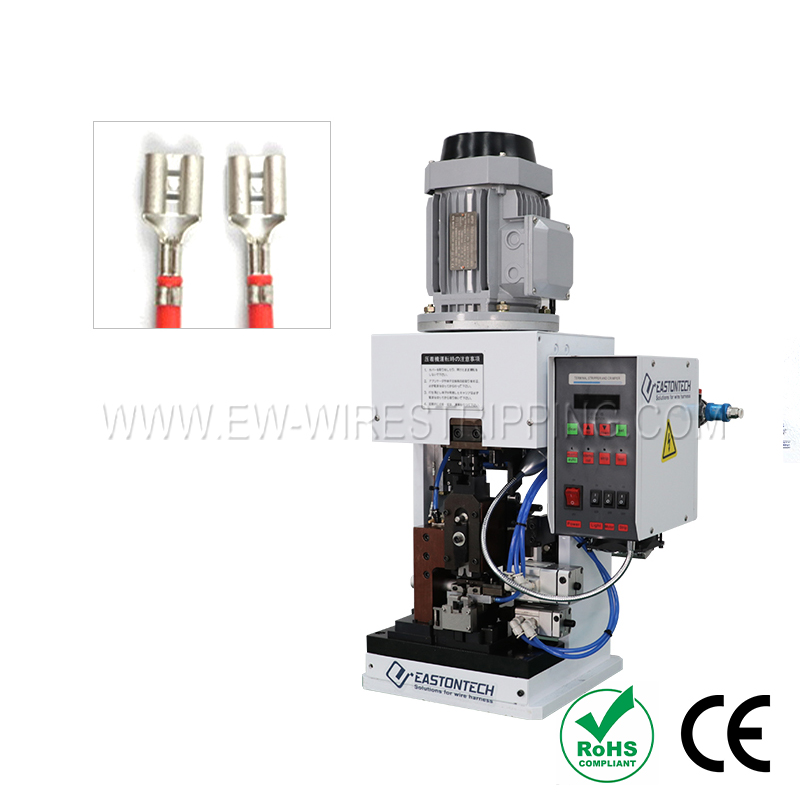

AWG16#-AWG24# Vertical Feeding Stripping and Crimping Machine(end feeding)
Electrical
Technical Data
| Model | EW-5045 |
| Power Supply | Single Phase 200V-240V 45/60Hz |
| Air Source | 0.5-0.6mpa (Dry and clean air) |
| Applicable wire Diameter | AWG16#-AWG24#(Different depends on the wire) |
| Applicable wire | AV、AVS、AVSS、CAVUS、KV、KIV、UL、fiber line ,etc. |
| Stripping length | 1.0mm-8.0mm |
| Cutting error | 0.05mm-0.1mm |
| Position error | 0.05mm-0.1mm |
| Crimping terminal | Open continuous terminal,straight |
| Crimping capacity | 3T/4T |
| Stroke | 50mm |
| Dimension | L450*W500*H1000mm |
| Weight | 100KG |
Feature
1. Adopts advanced frequency conversion technology to precisely control the variable speed motor, and is equipped with a high-precision control module and a transmission mechanism to make the stripping end one-time completion .
2.Driven by the cylinder, the action speed is fast, and the positioning is accurate .
3.The pneumatic parts are all made of Taiwan Yadeke brand components, which are durable and accurate.

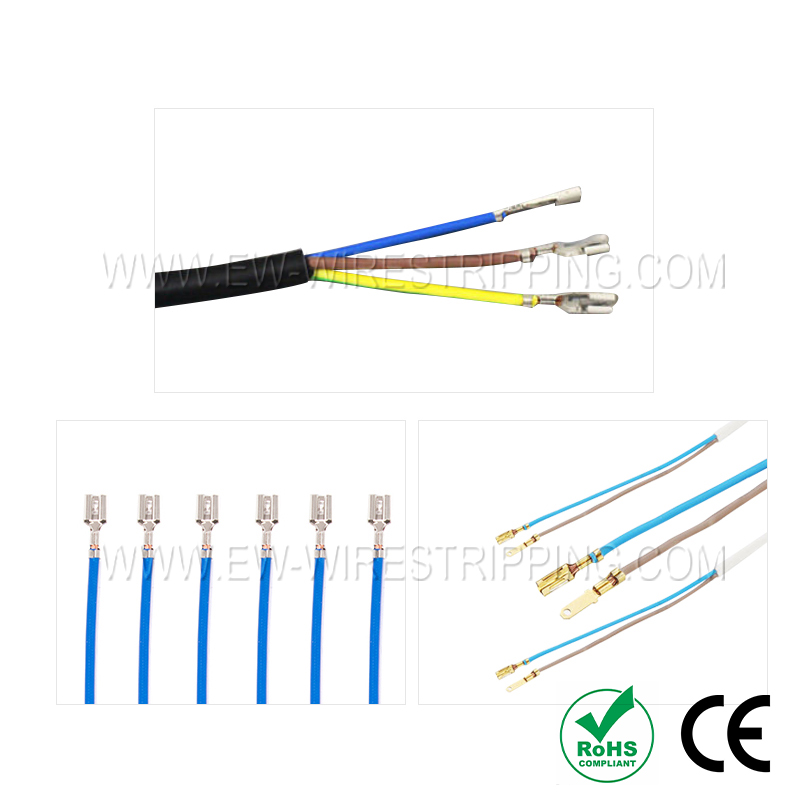

Application Range
More Info
Model：AWG16#-AWG24# Vertical Feeding Stripping and Crimping Machine(end feeding)
Model:EW-5045
Wire Diameter:AWG16#-AWG24#
Stripping length:1.0mm-8.0mm
Crimping capacity:3T/4T
Travel:50mm
Air Source:0.5-0.6mpa (Dry and clean air)
Wire Diameter:AWG16#-AWG24#
Stripping length:1.0mm-8.0mm
Crimping capacity:3T/4T
Travel:50mm
Air Source:0.5-0.6mpa (Dry and clean air)
