Flat Sheath Wire Cutting & Stripping Twisting Machine (0.6 - 4 mm2)
Eco-cut&Strip
Model：Flat Sheath Wire Cutting & Stripping Twisting Machine (0.6 - 4 mm2)
Model：EW-3020
Function: wire cutting, double-end stripping, middle stripping
Wire range: 2*（0.3-2.0mm2）
Cutting length: 0.1mm-99999.9mm
Stripping length:
sheathed wire:
stripping head:0.1-250mm,stripping tail: 0.1-70mm
Inner core:
stripping head:0.1-30mm,stripping tail: 0.1-30mm
Function: wire cutting, double-end stripping, middle stripping
Wire range: 2*（0.3-2.0mm2）
Cutting length: 0.1mm-99999.9mm
Stripping length:
sheathed wire:
stripping head:0.1-250mm,stripping tail: 0.1-70mm
Inner core:
stripping head:0.1-30mm,stripping tail: 0.1-30mm
Technical Data
|
Model |
EW-3020 |
EW-3020+T |
|
Function |
wire cutting, double-end stripping, middle stripping |
|
|
Wire range |
2*（0.3-2.0mm²） |
2*(0.3-2.0mm²)+twisting |
|
Cutting length |
0.1mm-99999.9mm |
|
|
Stripping length |
sheathed wire:stripping head:0.1-250mm,stripping tail: 0.1-70mm |
|
|
Inner core:stripping head:0.1-30mm,stripping tail: 0.1-30mm |
||
|
Stripping accuracy |
silent hybrid stepper motor 0.01mm |
|
|
Intermediate strip |
can be customized |
|
|
Capacity |
1000-2000 pcs / h |
500-1500 pcs / h |
|
Blade material |
imported tungsten steel / high speed steel |
|
|
Power |
AC110V/220V 50/60HZ |
|
|
Body size |
470mm * 450mm * 350mm |
565mm * 385mm * 370mm |
|
Body weight |
33kgs |
43kgs |
|
Remark function |
automatic entry / exit, timing start, jog adjustment |
|
Feature
High-performance, even for small cross-sections.
Cutting force, high volume output and advanced sensor technology make EW-3020 the number one choice for automated cutting and stripping, even for smaller wire cross-sections.
The machines can be used very efficiently thanks to their simple, intuitive control elements.

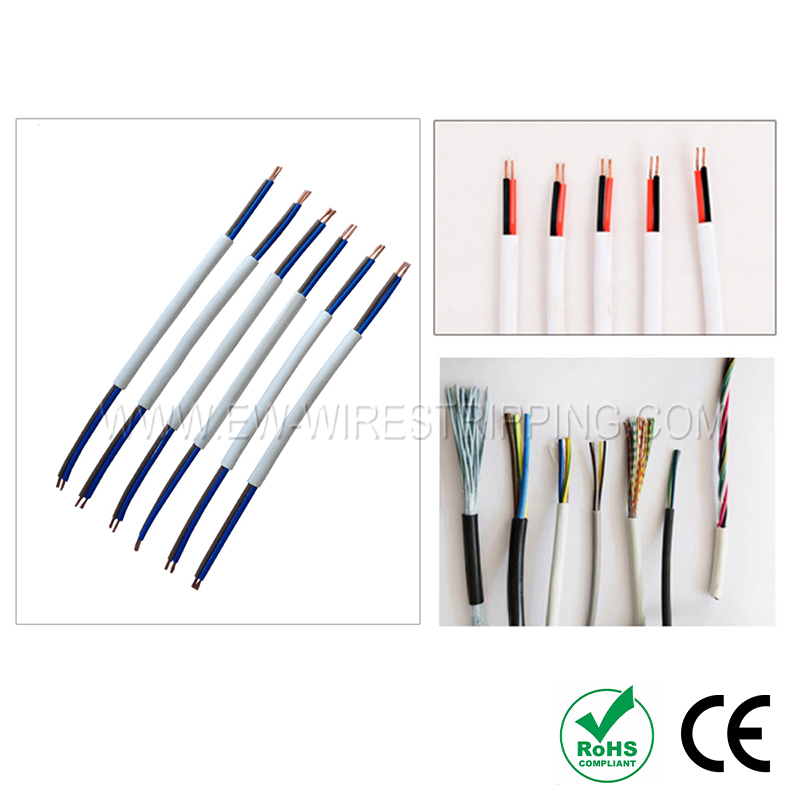

Application Range
