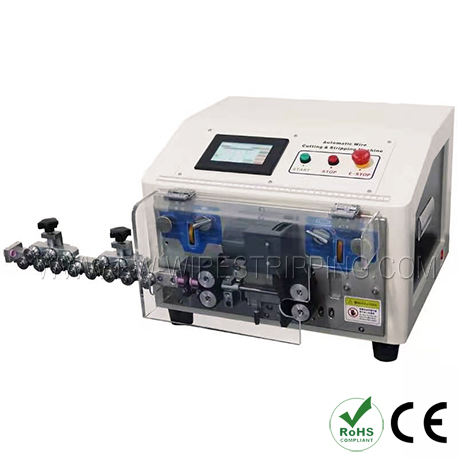

Multi-conductor Cable Cutting & Stripping Machine (1 - 6 mm)
Eco-cut&Strip
Technical Data
| Model | EW-3050 |
| Function | Cable cutting, double-end stripping,middle stripping |
| Wire range | OD 1-6mm |
| Strip cores | 2/3/4 |
| Cutting length | 0.1mm-99999.9mm |
| Stripping length | Outer line:stripping head:0.1-250mm,stripping tail: 0.1-70mm Core line:stripping head:0.1-30mm,stripping tail: 2-30mm |
| Stripping accuracy | Silent hybrid stepper motor 0.01mm |
| Special products | Can be customized |
| Capacity | 1000-2000 / h |
| Blade material | Imported tungsten steel /high-speed steel |
| Power | AC110V/220V 50/60HZ |
| Body size | 470mm*450mm*350mm |
| Body weight | 32kg |
| Remark function | Automatic entry / exit, timing start, jog adjustment |
Feature
1. The EW-3050 is exclusively designed cable stripping machine for round multi-core cable.
2. Cut and strip double layers in one cycle. Adapt to cable up to 6mm in O.D.
3. Unique cable carding device and blades shorten cycle time, bring precise processing and high production rate.
4. Automatic length modification improves cutting accuracy and decrease waste.
5. Wire lack detection stops machine automatically and sounds alarm, which maximize human resource
Application Range
More Info
Model：Multi-conductor Cable Cutting & Stripping Machine (1 - 6 mm)
Model：EW-3050
Function: Cable cutting, double-end stripping,middle stripping
Cable diameter: 1-6mm
Strip cores:2/3/4
Cutting length:0.1mm-99999.9mm
Stripping length:
Outer line:
stripping head:0.1-250mm,
stripping tail: 0.1-70mm
Core line:
stripping head:0.1-30mm,
stripping tail: 2-30mm
Function: Cable cutting, double-end stripping,middle stripping
Cable diameter: 1-6mm
Strip cores:2/3/4
Cutting length:0.1mm-99999.9mm
Stripping length:
Outer line:
stripping head:0.1-250mm,
stripping tail: 0.1-70mm
Core line:
stripping head:0.1-30mm,
stripping tail: 2-30mm
