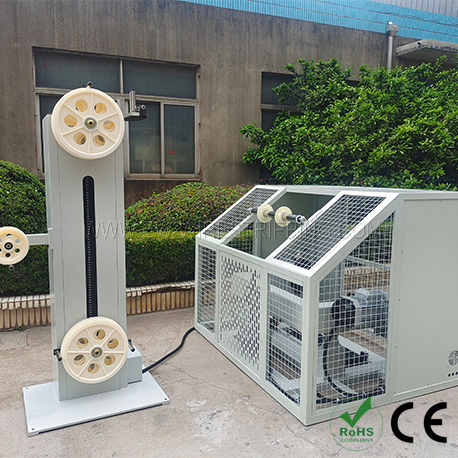

Model:Robust Cable Reel Prefeeding System (1000/1500/2000/2500kgs)

Scan the QR code

Share to:
  • 刷新
Model:EW-1435/EW-1440/EW-1445/EW-1450L/EW-1455L/EW-1460L
Wire  Diameter:  3-20mm
Loading  Weight:1000kgs
Max.  Feeding  Speed:  250m/min
Power  Supply:  220V/110V/50HZ/60HZ
Feeding  Motor  Power:2.2-4.0KW
  • ·It features a quick lock cam mechanism and motorized reel lifting system fro easy cable loading and fast changeover

    ·The feeding process allows rapid acceleration of the spool while maintaining low forces on the material being fed

    ·The integrated cable accumulator controls the speed of the dereeling drive

    ·The cable is led under constant tension to the cross cutting machine for trouble-free feeding

  • Model

    EW-1435

    EW-1440

    EW-1445

    EW-1450-L

    EW-1455-L

    EW-1460-L

    Wire diameter

    3-20mm

    3-20mm

    3-20mm

    3-20mm

    3-20mm

    3-20mm

    Cable drum

    size

    OD 400-630, width 250-500

    OD 500-800, width 300-600

    OD 600-1000, width 450-750

    OD 600-1250, width 550-950

    OD700-1400, width 550-950

    OD 800-1600, width 600-900

    Drum hole dimension

    standard 56-90mm ( more dimension can be customized)

    standard 56-90mm ( more dimension can be customized)

    standard 56-90mm ( more dimension can be customized)

    standard 56-90mm ( more dimension can be customized)

    standard 56-90mm ( more dimension can be customized)

    standard 56-90mm ( more dimension can be customized)

    Loading weight

    1000kgs

    1000kgs

    1000kgs

    1500kgs

    2000kgs

    2500kgs

    Max. feeding speed

    250m/min

    250m/min

    250m/min

    100m/min

    100m/min

    100m/min

    Feeding motor power

    2.2KW

    3KW

    4KW

    4KW

    5.5KW

    7.5KW

    Feeder

    dimension

    900*1550*900

    mm

    1100*1650*1100

    mm

    1100*1800*1100

    mm

    1400*2200*1300

    mm

    1550*2200*1500

    mm

    1600*2200*1600

    mm

    Feeder N.W.

    300kgs

    310kgs

    320kgs

    350kgs

    400kgs

    450kgs

    Tension bracket

    dimension

    800*580*2000

    mm

    800*580*2000

    mm

    800*580*2000

    mm

    1650*500*1400

    mm

    1800*580*1400

    mm

    1800*580*1400

    mm

    Tension bracket N.W.

    180kgs

    180kgs

    180kgs

    120kgs

    120kgs

    120kgs

    Power supply

    AC380V , 50HZ/60HZ (220V need extra cost)
