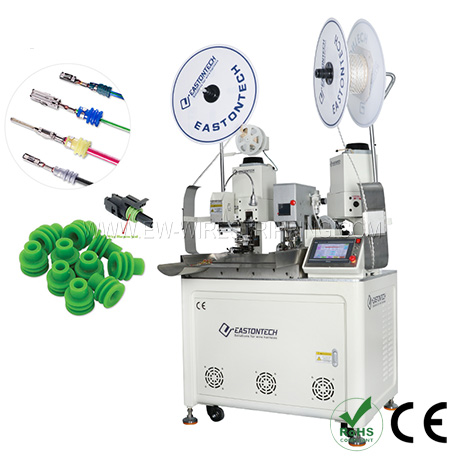

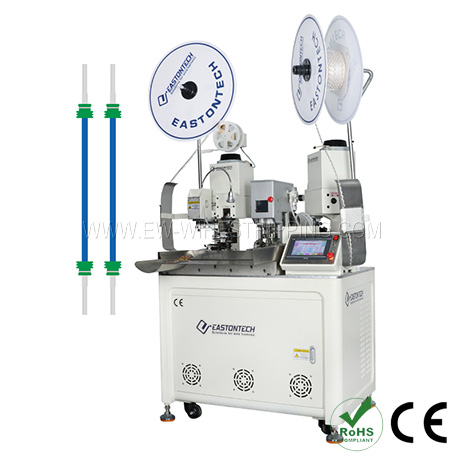

Fully Automatic Double-head Waterproof Plug Crimping Terminal Machine
Cut Strip Terminate& Solder
3663
Model：Fully Automatic Double-head Waterproof Plug Crimping Terminal Machine
Model:EW-8010
Wire Range:AWG16-AWG28
Cutting Length:50-9999mm
Stripping Length:1.5-10mm
Compressed Air : 4-6kgf
Wire Range:AWG16-AWG28
Cutting Length:50-9999mm
Stripping Length:1.5-10mm
Compressed Air : 4-6kgf
Technical Data
| Model | EW-8010 |
| Applicable wire range | AWG28-AWG16 |
| Cut length | 50-9999mm (set 1mm unit) |
| Cut precision | ±1 (1+0.002*L) mm, L=cut length |
| Stripping length | 1.5-20mm |
| Crimp capacity | 2.0T/3.0T |
| Power | 220V/110V/50/60HZ |
| Display language | Chinese/English |
| Compressed air | 4-6kgf |
| External dimensions | 900mm*1200mm*1500mm (length, width and height) |
| weight | 500KG |
| Adaptive line specie | AV.AVS.AVSS.CAVUS, KVKIV, UL |

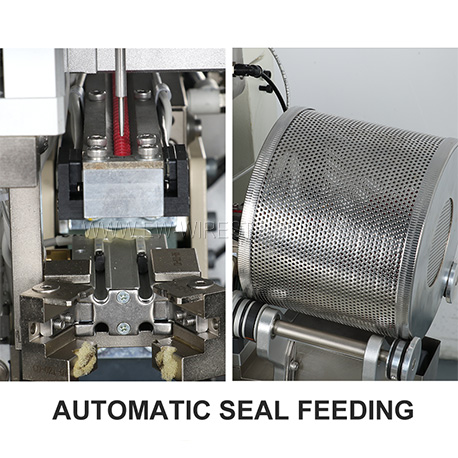

| Waterproof plug insertion | waterproof plug (double end / single end) insertion |
Feature
·The EW-8010 is a safe, efficient and precise processing machine. (can be customized according to requirements).
·Precision automatic double-head waterproof plug crimping terminal machine , which is driven by Mitsubishi servo motor and ball screw, and uses Mitsubishi control system to make the position of wire feeding, stripping,crimping,double waterproof plug and so on very precise.
·The movement connection is smooth, the mechanical control is simple and convenient, all are operated by the touch screen, the data adjustment can change the length of the stripping and cutting line, the cutting depth, the position of crimping, etc., saving time for the adjustment personnel, and the automatic detection function of the machine can also effectively control the defective products so that it is discovered and processed timely .

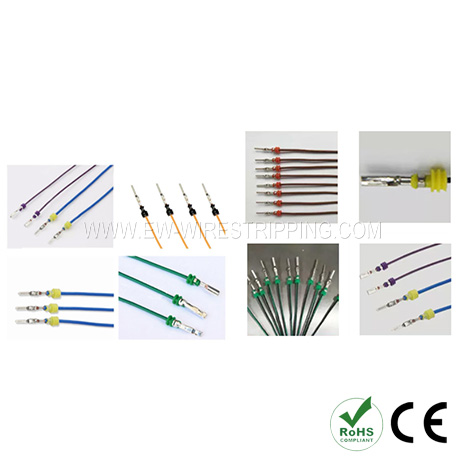

Application Range
