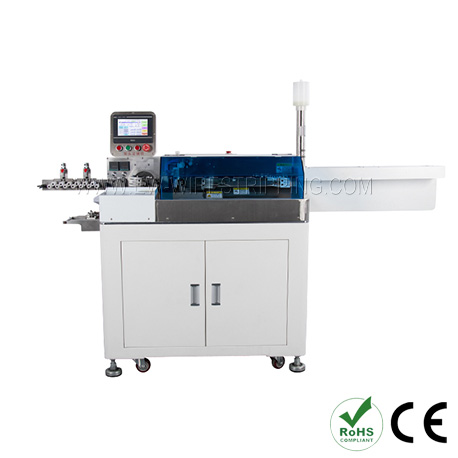

Model：Automatic 8 Wires Stripping and Tinning Machine
Scan the QR code
Model:EW-8015
Wire range:AWG32-AWG16
Stripping length:1-15mm
Cut precision:±(0.03*L) mm
Cutting length:35-1000mm
Twisting length:1-15mm
Tinning length:1-15mm
Capacity:15000-20000pcs/hour
Wire range:AWG32-AWG16
Stripping length:1-15mm
Cut precision:±(0.03*L) mm
Cutting length:35-1000mm
Twisting length:1-15mm
Tinning length:1-15mm
Capacity:15000-20000pcs/hour
- With its features of gentle wire processing, fast working speed, economical approach to wearing parts and fully automatic operation, it has quickly become one of our most popular wire processing machines both domestic and abroad. The product data is saved in a database and can be retrieved at any time, with this function you can change different wires in seconds. All the setting such as cutting length, stripping length, flux soaking place and time, tinning place and time, tinning depth will be done easily through LCD touch screen. The solder wire can be set automatically feeding after a certain round of cutting and stripping, no need of manual work.
Model
EW-8015
Wire range
AWG32-AWG16
Stripping length
1-20mm
Cut precision
±(0.03*L) mm
Cutting length
35-1000mm
Twisting length
1-15mm
The min. cutting length with double side tinning
15mm
Capacity
15000-20000pcs/hour
Power
220V/110V/50/60HZ
Air pressure
0.5-0.7Mpa
Machine size
1210*770*1380mm
Weight
350Kg
Options
CCD visual Inspection; CFM
