Automatic Single Head Wire Crimping Sealing Tinning Machine
Cut Strip Terminate& Solder
Technical Data
| Model | EW-8020 |
| Applicable wire range | AWG28-AWG14 |
| Cut length | 50-9999mm (set 1mm unit) |
| Cut precision | ±1 (1+0.002*L) mm, L=cut length |
| Stripping length | 1.5-10mm |
| Crimp capacity | 2.0T/3.0T |
| Power | 220V/110V/50/60HZ |
| Productivity | 2200pcs/hour |
| Compressed air | 4-6kgf |
| External dimensions | 700mm*800mm*1500mm (length, width and height) |
| Weight | 348KG |
| Function | Both ends cutting stripping, single end sealing |
| Detection unit | Wire/Terminal loss; Wire tangling; Low air pressure |
| CFM | Optional |
Feature

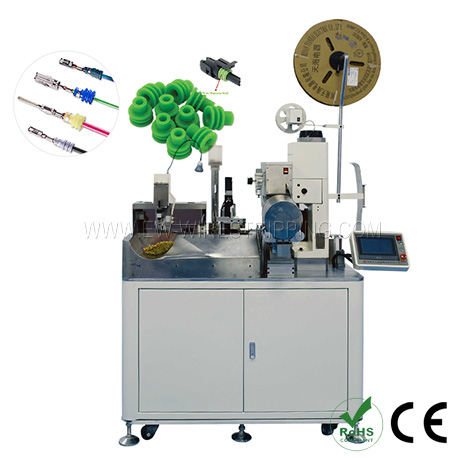

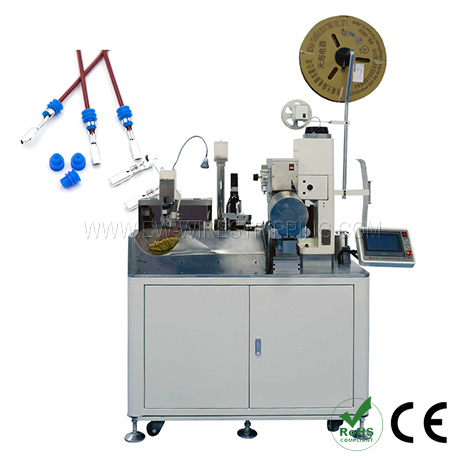

This is a fully automatic wire stripping crimping and sealing machine, one end sealing and crimping,
another end only crimping terminal.You can also close the sealing function in program if you only want to crimp terminal.

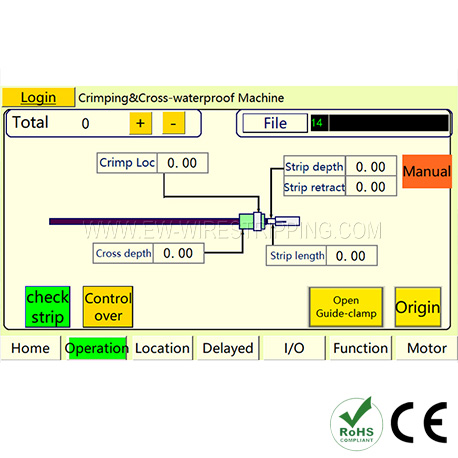

You can store your settings in different program files through touch screen.
Application Range
More Info
Model：Automatic Single Head Wire Crimping Sealing Tinning Machine
Model:EW-8020
Applicable wire range:AWG28-AWG14
Cut length:0-9999mm
Stripping length:1.5-10mm
Crimp capacity:2.0T/3.0T
Productivity:2200pcs/hour
Compressed air:4-6kgf
Applicable wire range:AWG28-AWG14
Cut length:0-9999mm
Stripping length:1.5-10mm
Crimp capacity:2.0T/3.0T
Productivity:2200pcs/hour
Compressed air:4-6kgf
