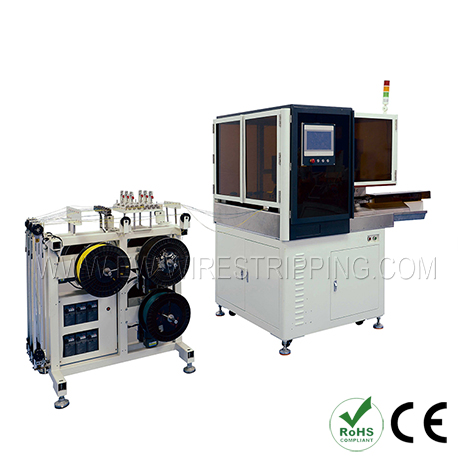

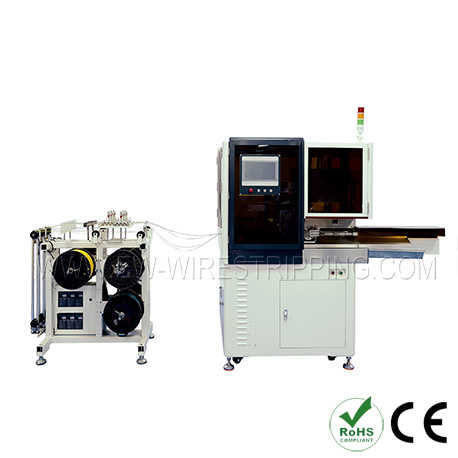

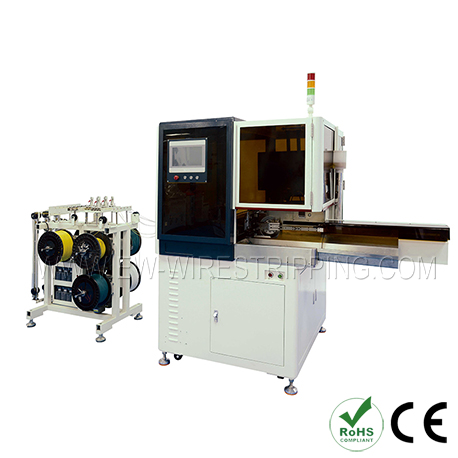

Automatic Wire Crimping Housing Insertion Tinning Machine
Cut Strip Terminate& Solder
3224
Model：Automatic Wire Crimping Housing Insertion Tinning Machine
Model:EW-8025
Applicable wire range:AWG28-AWG20 Diameter ＜ 2.5mm
Stripping length:1-10mm
Cut precision:±0.1 mm
Cutting length:10-1000mm
Applicable wire range:AWG28-AWG20 Diameter ＜ 2.5mm
Stripping length:1-10mm
Cut precision:±0.1 mm
Cutting length:10-1000mm
Technical Data
| Model | EW-8025 |
| Applicable wire range | AWG28-AWG20 Diameter ＜ 2.5mm |
| Stripping length | 1-10mm |
| Cut precision | ±0.1 mm |
| Cutting length | 10-1000mm |
| Capacity | 4000-6000pcs/hour (L=100mm) |
| Crimping force | 2.0T |
| Stroke | 30mm |
| Air pressure | 0.5-0.7Mpa |
| Wire color | 2-10 color wires(must be the same specification） |
| Room Moisture | 30%-80%RH |
| Detection | Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error |
| Power | 220V/110V/50/60HZ |
| Applicators | OTP applicator |
| Dimension | 1560*1100*1600mm |
| Weight | 500Kg |
| Options | CCD visual Inspection; CFM |
Feature
·The machine can both side crimping and one side inserting.
·Up to 6 rollers of different colors wires can be hung on a 6 station wire prefeeder.
·The order and length of each color of wire can be specified in the program.
·The wire can be crimped, inserted and then fed by the vibration plate automatically.
·The crimping force monitor can be customized according to production requirements.

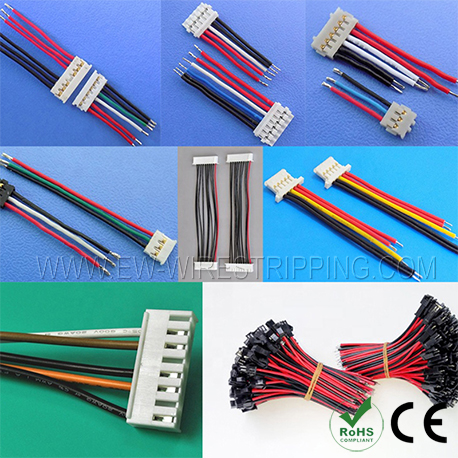

Application Range
