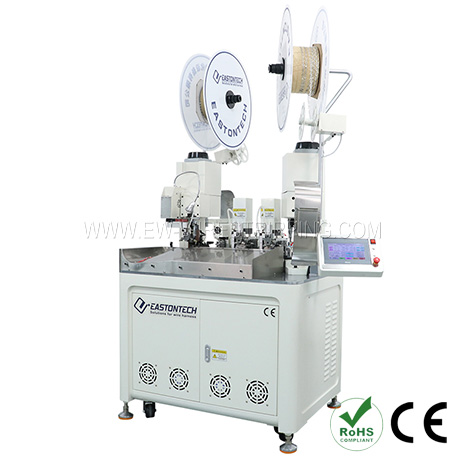

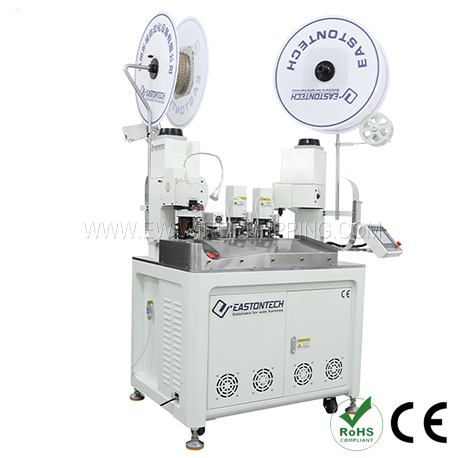

Fully Automatic Two Wire Joint Crimping Machine
Cut Strip Terminate& Solder
3588
Model：Fully Automatic Two Wire Joint Crimping Machine
Model:EW-8035
Applicable wire range:AWG30-AWG14
Stripping length:Front: 0.5-8mm End: 0.1-10mm
Cut precision:±0.2 mm+L*0.002mm (L=100mm)
Cutting length:41-99999mm
Applicable wire range:AWG30-AWG14
Stripping length:Front: 0.5-8mm End: 0.1-10mm
Cut precision:±0.2 mm+L*0.002mm (L=100mm)
Cutting length:41-99999mm
Technical Data
| Model | EW-8035 |
| Applicable wire range | AWG30-AWG14 |
| Stripping length | Front: 0.5-8mm End: 0.1-10mm |
| Cut precision | ±0.2mm+L*0.002mm (L=100mm) |
| Cutting length | 41-99999mm |
| Capacity | 3500pcs/hour(L=50-100mm) |
| Crimping force | 2.0T |
| Stroke | 30mm |
| Air pressure | 0.5-0.7Mpa |
| Cutting depth | Max. 5.5mm |
| Applicators | OTP applicator |
| Detection | Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error |
| Power /Power Rating | 220V/110V/50/60HZ /3000W |
| Dimension | 750*1000*1800mm |
| Weight | 500KGS |
| Options | CCD visual Inspection; CFM |
Feature

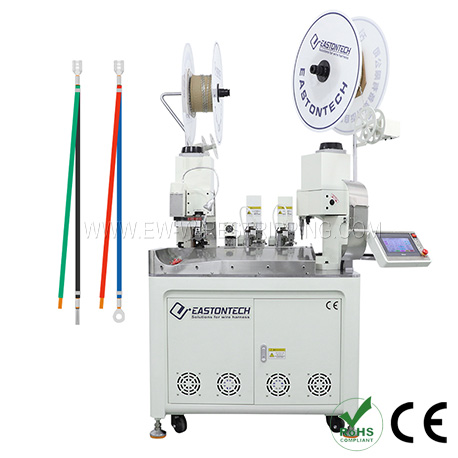

·This is a fully automatic two-wire combined crimping terminal machine.
·There are 2 sets of independent wire entry mechanisms and 2 terminal crimping stations on the machine.
·Therefore, it supports the combination of two wires with different wire diameters to crimp two different terminals.

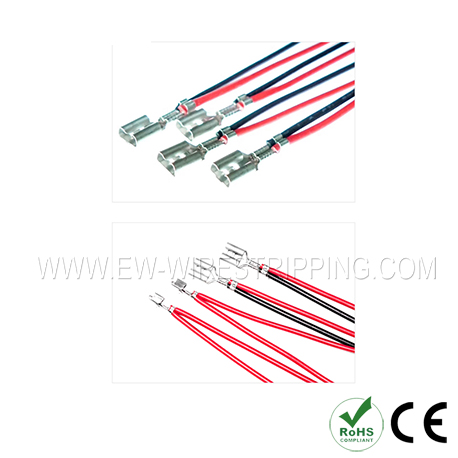

·After cutting and stripping the wires, one end of the two wires can be combined and crimped into one terminal, and the other two ends of the wires can also be crimped to difterent terminals, The machine has a buit-in rotation mechanism, and the two wires can be rotated 90 degrees after they are combined, so they can be crimped side by side or stacked up and down.
Application Range
