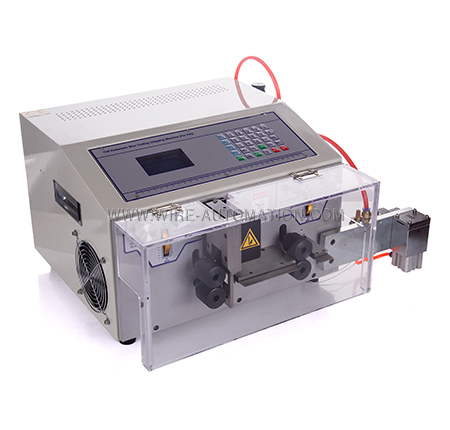

Flexible Flat Cable Cutting & Stripping Machine (2 - 12 P)
Eco-cut&Strip
Technical Data
|
Model |
EW-07C |
|
Pin number |
2 - 12 Pin |
|
Cutting length |
1 - 100,000 mm |
|
Cutting length tolerance |
± 0.0001 * L |
|
Stripping length (side I) |
0 - 15 mm |
|
Stripping length (side II) |
0 - 15 mm |
|
Maximum guide tube size |
100 * 22 * 2.8 mm |
|
Blade material |
Hard tungsten steel |
|
Display mode |
LCD |
|
Productivity |
3000 - 5000 pcs./h (L = 100 mm) |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
450 W |
Feature
● High precision and productivity solutions for wire cable cutting and stripping.
● Easy to operate program and low maintenance.
● Safety protection.
● Optional external device connection possibility: Wire feeding machine, and wire take-out device...
Application Range
More Info
Model：Flexible Flat Cable Cutting & Stripping Machine (2 - 12 P)
Model: EW-07C
Pin number: 2 - 12 P
Cutting length: 1 - 100,000 mm
Cutting length tolerance: ± 0.0001 * L
Stripping length (side I): 0 - 15 mm
Stripping length (side II): 0 - 15 mm
Pin number: 2 - 12 P
Cutting length: 1 - 100,000 mm
Cutting length tolerance: ± 0.0001 * L
Stripping length (side I): 0 - 15 mm
Stripping length (side II): 0 - 15 mm
